10/100/1000Mbps 802.3bt Poe++ Splitter: 48VDC 4pair 802.3at/Bt, 36VDC Output, 65W

Product Description

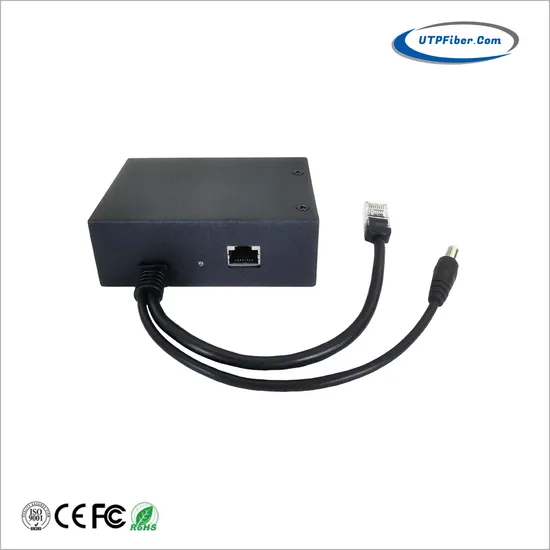

10/100/1000Mbps 802.3bt PoE++ Splitter: 48VDC 4Pair 802.3at/bt, 36VDC Output, 65W Overview The UF-SPG36V2A Active splitters converts 802.3bt PoE input to 36VDC 65W output. The output is provided on a wire terminal connector which accepts up to 12AWG wire. Compatible with Gigabit Ethernet, inputs and outputs are isolated. They have various protections for surge, short circuit, overload and overvoltage.
The PoE splitter, output voltage of 36V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other PoE practical place, and is not restricted by layout of power line.
Features 2 RJ45 interfaces: 1-port data + power input, 1-port data output Compatible with IEEE 802.3bt PoE++ Splits the PoE power over RJ45 Ethernet cable into 36VDC 1.81A output Plug & Play Built-in high performance chip and high specification circuit board Supports high Surge/ESD protection RJ45 full shield port Full bridge design, non polarity input Desktop, wall-mount design Short Circuit, Over Current and Over Voltage Protection Product Description: Introducing the 10/100/1000m 36V 1.8A Poe Splitter by Shenzhen UTP Fiber Technology Co., Ltd. This Gigabit Poe Splitter provides a 36V 1.8A output and supports Full-Duplex & Half-Duplex transmission modes. With a transmission rate of 10/100/1000Mbps, it is the perfect solution for your networking needs.
Product Name: 10/100/1000m 36V 1.8A PoE Splitter Company Name: Shenzhen UTP Fiber Technology Co., Ltd. Keywords: PoE Splitter, 1 Port 10/100/1000m 802.3bt PoE Splitter, Gigabit PoE Splitter 36V 1.8A Output, 10/100/1000m PoE Splitter, 36V 1.8A PoE Splitter, Gigabit PoE BT Splitter 10/100/1000 Mbps 65W, 10/100/1000m 36V 1.8A PoE Splitter, DC36V 1.8A PoE Splitter Attributes: Transmission Mode: Full-Duplex & Half-Duplex, Type: PoE Splitter, Transmission Rate: 10/100/1000Mbps Description: The 10/100/1000m 36V 1.8A PoE Splitter from Shenzhen UTP Fiber Technology Co., Ltd. is a high-quality device that allows you to split power and data transmission. With a transmission rate of 10/100/1000Mbps and support for full-duplex and half-duplex modes, this PoE splitter is perfect for various networking applications. It provides a stable and reliable power supply with its 36V 1.8A output. Ideal for Gigabit PoE setups, this splitter is a versatile and efficient solution.

Hardware Specifications
Interface	Ethernet
	1 x 10/100/1000BASE-T RJ45, Ethernet data output port
	PoE in
	1 x 10/100/1000BASE-T RJ45, PoE power input port
	DC Output
	1 x DC Connector
DC Socket	DC Connector 2.5mm
LED Indicators	PoE in:
	90W+ (Yellow)
Data Rate	10/100/1000Mbps
Dimensions (L x W x H)	95 x 65 x 35 mm
Weight	350g
Installation	Desktop/wall mountable
ESD Protection	4KV
EFT Protection	4KV
Enclosure	Metal case
Unit Output Current (at 56VDC Input)	With 803.bt type 4 PoE++ input:
	1.81A@36V DC
Power Consumption	System on:
	5 watts
	Ethernet full loading without DC output:
	70 watts
	Ethernet full loading with maximum 36V DC, 1.81A output:
Network Cable	803.bt PoE (60W+)
	4-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
	802.3at PoE (30W)
	2-pair UTP Cat. 5, 5e, 6 up to 100m (328ft)
Power over Ethernet
PoE Standard	802.3bt Type 3/4 Power over Ethernet
	4-pair 802.3at PoE+
	Compliant with voltage within 48-56V DC
Power Output	DC 36V
Power Pin Assignment	1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)
Standards Conformance
Standards Compliance	IEEE 802.3 10BASE-T Ethernet
	IEEE 802.3u 100BASE-TX Fast Ethernet
	IEEE 802.3ab 1000BASE-T Gigabit Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3bt 4-pair Power over Ethernet Type 4
Regulatory Compliance	FCC, CE
Environment Specifications
Operating Temperature	'-20~ 50 degrees C
Storage Temperature	'-30~ 60 degrees C
Humidity	5 ~ 95% (non-condensing)

Ordering Information

Model	Description
UF-SPG36V2A	PoE Splitter: 1x10/100/1000T 802.3bt PoE input + 1xNetwork +1xDC output (36V 1.81A), MAX 65 Watts
