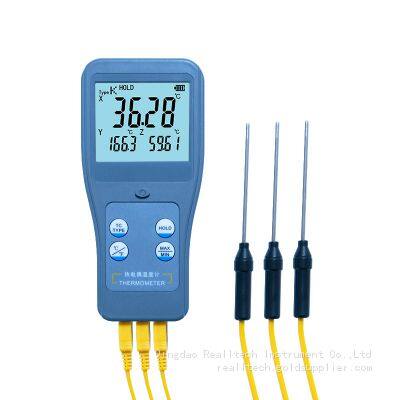

RTM1103 Three-ChannelThermocouple Thermometer
Introduction
It is a high-precision of 3-channel thermocouple thermometer, which uses thermocouples as sensors to measure temperature signals, can meet the needs of different industries. Used to measure the temperature of liquids, gases, solids and surface temperature. And there are a variety of thermocouple types to choose from, which are widely used in industrial production, research and development experiments, food processing, refrigerated storage, metal industry and other occasions.
Features
• Large LCD with display. It can display three values at the same time.
• Thermocouple(K/J/E/T/R/S/N) temperature measurement.
• The types of 3-channel thermocouple are switched simultaneously.
• Temperature unit (°F/°C).
• 0.01 high resolution.
• High accuracy.
• With maximum and minimum values function.
• With the displayed values hold function.
• With battery indication function.
• With automatically power off function.
Specifications
Display
| Backlit LCD
|
Thermocouple Type
| K/J/E/T/R/S/N-type
|
Range(K-type)
| -200~1372°C (-328~2501.6°F)
|
Accuracy(K-type)
| >-100°C, ±(0.1% of reading+0.5°C)
<-100°C, ±(0.3% of reading+0.5°C)
|
Resolution
| 0.01
|
Sampling Channel
| 3 Channels
|
Unit
| °C/°F
|
Operating Conditions
| Temperature: 0~50°C (32~122°F)
Humidity: 0~80%RH(No Condensation)
|
Storage Conditions
| Temperature: -10~60°C (14~140°F)
Humidity: 0~90%RH(No Condensation)
|
Power Supply
| 4×1.5V AAA(UM-4) Battery
|
Size
| 170*80*31mm
|
Weight
| 191g(Not Including Batteries)
|
Standard Accessories
Main Unit
| 1
|
TP-02 Thermocouple
(φ3*75mm, K-type, Range: -50~400℃)
| 3
|
Manual
| 1
|
Carrying Case
| 1
|
Note:
The default type of thermocouple in the standard accessories is K-type. If other types of thermocouple are needed, please specifying when placing order.
The warranty period is 12 months
>>
