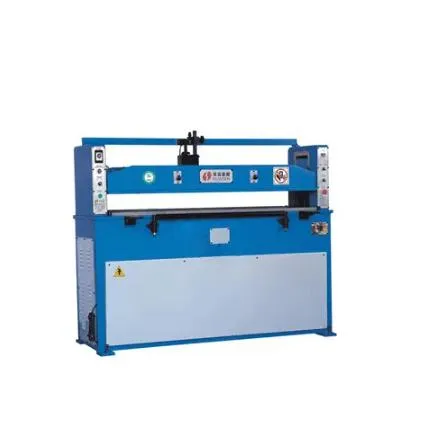

Automatic Feeding Precision Hydraulic Four Column Plane Cutting Machine

Product Description

Use: hydraulic plane cutting press is suitable to scissor up leather, plastic, nylon paper carton, sponge and synthetic fibres, in particular, it is suitable to cut single layer ot multi layer broad width materials.
Features:
1) It is suitable to scissor up leather, plaster, nylon, paper, carton, sponge and synthetic fiber, in particular, it is suitable to cut single layer or multilayer broad width materials;
2) Simple and safe operation, scissoring force is strong with fast scissoring speed;
3) Main shaft is equipped with a lubricating system to lessen wear and prolong service life;
4) Knife position can be set simply, and can be adjusted conveniently and quickly;

Model	XCLP2-250
Max Cutting Force	25 Tons
Stroke Adjustment	10-90mm
Distance between pressing board and table	50-150mm
Press Board	1600×500mm
Table Area	1600×550mm
Electrical Supply	3x440/415/400/380/220/200V, 50/60 Hz
Motor Power	2.2kw
Packing Size (L×W×H)	2200×1000×1700mm
Weight ( Without Oil )	1600Kg
Hydraulic oil (46 #)	80 Liters

1) This is the first time I use this kind of machine, is it easy operate?
There are guide video that show how to use machine and english instruction book send to you with
machine. If there is still have any question, we will provide free professinal guide for you until you
could use machine well.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem. Free after-sales
service life for machine, please feel free contact us if your machine have any problem.
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your
port name. There will be best shipping freight and machine price send to you.

---
