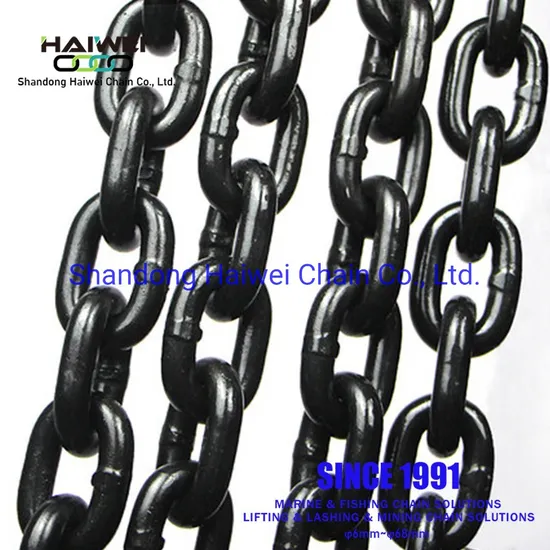

Featured Product G80 Black Painted 8× 24/12× 36/18× 54 25mnv Lifting Link Chain Factory Supplied with Good Feedback

Product Description

Featured Product G80 Black Painted 8× 24/12× 36/18× 54 25mnv Lifting Link Chain Factory Supplied with Good Feedback
Attached a form for your reference and we could produce any size based on your needs.

(SIZE AND WEIGHT):
SIZE d*t MM	WIDTH b1 MIN b2MAX		WEIGHT KG/M	APPRAX LOAD KN	TEST LOAD KN	BREAKING LOAD MIN KN
6*8	7.5	21	0.79	1.1	27	45.2
7*21	9	24.5	1.07	1.5	37	61.6
8*24	10	28	1.38	2	48	80.4
10*30	12.5	35	2.2	3.2	76	125
11*43	12.6	36.5	2.33	3.8	92	154
12*36	15	42	3.1	4.6	109	181
13*39	16.3	46	3.8	5	128	213
14*42	18	49	4.13	6.3	150	250
15*46	20	52	5.17	7	168	280
16*48	20	56	5.63	8	192	320
18*54	23	63	6.85	10	246	410
19*57	23.7	63.2	7.7	11.3	270	450
20*60	25	70	8.6	12.5	300	500
22*66	28	77	10.7	15.3	366	610
23*69	29.9	85.1	10.2	16	415	665
24*72	32	82	12.78	18	432	720
25*75	32.5	92.5	14.1	20	491	785
26*78	35	91	14.87	21.3	510	850
28*84	36.4	104	17.6	25	616	985
30*90	38	105	19.6	28.3	678	1130
32*96	40	106	22.29	32.2	772	1286
36*108	46.8	133	29	40	1020	1630
40*120	52	148	36	50	1260	2010
45*135	58.5	167	45.5	63	1590	2540
48*144	60	170	52	72.5	1450	2900

Our Services1. Prompt reply for inquiry within 24 hours2. One-on-one service guarantees you the best purchasing experience.3. Strong production capacity and professional technical engineers guarantee the delivery time and quality.4. Strict quality control.

---
