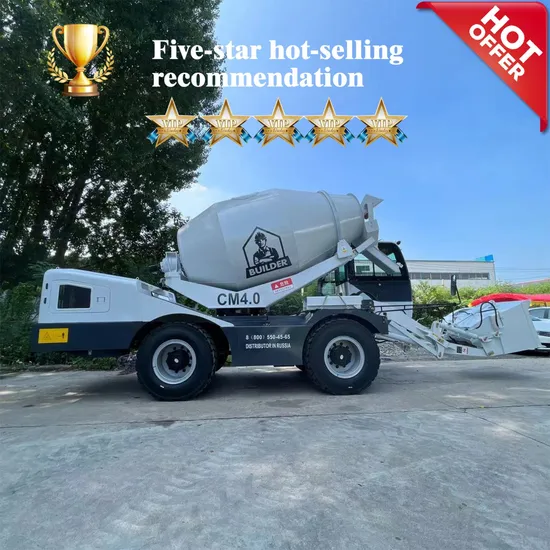

China Made Self Loading Mixer Truck 4 Cubic Concrete Mixing Station Mobile Concrete Mixer for Sale

Product Description

MODEL NO	4.0 Model: 4.0
TYPE	Integral frame chassis movable, self loading, mixing, transporting
FUNCTION	concrete, sand, fertilizer compound, wet or dry feed materias mixing and discharging
PRODUCTIVITY	BATCH≤15MINS, 4BATCHS/HOUR
drive	4 x 4
steering	Front steering
ENGINE	YUNNEI ENGINE: FOUR-CYLINDER 2200RPM,92KW
SPEED	HIGH SPEED: 36.5KM/H; LOW SPEE:6.5KM/H
Gear number	Three forwards, three backwards
Fuel consumption	Idle state 2L-3L, working state 6L-8L.
TIRE	16/70-20 (Steel wire tyre)
DRUM	Geometric volume 5.5 cubic meters, the best stirring 3.5-4 cubic meters
Spiral blade in tank	Double helix mixing, with the guide screw, so that the mixing material more uniform.Turn the feed left, turn the discharge right
mixing tank 270°discharges	The tank rotates horizontally to 270 degrees.There is no dead Angle for discharging around the vehicle
TIPPING CHUTE	Equipped with 2 chute for detachable to increase discharging length
SHOVEL	0.55 shovel capacity: 0.55³
Bucket discharge switch	Hydraulic gate, electric control
OPERATION HANDLE	ELECTRIC CONTROL BUTTON FOUR-WAY GUIDE HANDLE
MOVING HYDRAULIC	(DENGHONG)PUMP:DENGHONG
	(HANK) Torque converter(HANK)
Work hydraulic	(DENGHONG) PUMP/valve: DENGHONG
Mixing system	(HANK) SPEED REDUCER:(HANK)
	Mixing motor(ZHENJIANG DALI)
Drive axle	LIUFENG
WATER SUPPLY	HYDRAULIC DRIVING SELF-PRIMIING PUMPS.
HIGH-PRESSURE WATER PUMP WASH	HIGH-PRESSURE WATER PUMP WASH
Weighing system	Electronic weighing system (language optional)
VOLTAGE	Battery 24V-100A 2 pieces
HYDRAULIC OIL BOX	TANKAGE180L, SUMMER:NO68 HYDRAULIC OIL, WINTER:NO46 HYDRAULIC OIL, VERY COLD ZONE: NO35 HYDRAULIC OIL
Water tank capacity	520L
Diesel tank capacity	180L
whole weight	7600KG COMPLETE VEHICLE KERB MASS 7600kg
CAB	Prevent falling objects cab
	Adjustable steering wheel
	Adjustable seat
	Seat belts
	Fire extinguisher
	Astern image
ALARM LAMP	STANDARD CONFIGURATION
RADIO	STANDARD CONFIGURATION
A/C	optional
ESCAPE HAMMER	STANDARD CONFIGURATION
Astern sound prompt	STANDARD CONFIGURATION
Walking control mode
	STANDARD CONFIGURATION:mechanical	Optional:Electric control

About Us
Our Advantages
1.Why choose us?
Choose our construction machinery because we provide efficient, reliable and safe construction solutions. Our products use advanced technology to ensure efficient construction, while focusing on energy conservation and environmental protection, in line with the concept of sustainable development. We have a strong brand strength and a complete after-sales service system, and can provide customers with all-round support. Whether it is a large-scale engineering project or a daily construction task, our construction machinery can meet your needs and help you successfully complete the construction task.
FAQ Q1: How long is the Warranty for DAOJ product? A1: DAOJ provides 12 months or 1000 hours for the whole machine from on board time. Q2: How about the delivery time?
A2: Usually DAOJ producing time is 15- 40 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: What kind terms of payment can be accepted?
A3: :Normally we can work on T/T term or L/C term.
Q4: Can DAOJ provide customized products? OEM products or ODM products?
A4: Yes, DAOJcan provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special request.
Q5: Could we request our own color for the products?
A5: Yes, of course

---
