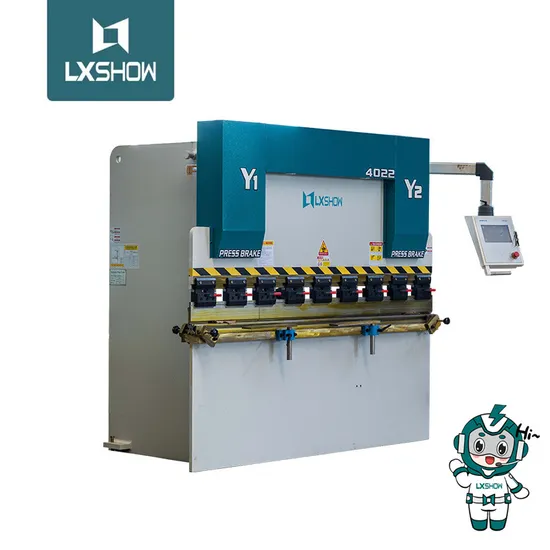

Manufacture Sells CNC High Efficiency Bending Machine for Metal

Product Description

Product Description
The frame is composed of fuel tank, bracket, workbench, left and right wall panels and sliders to ensure the structural strength of the frame. After welding, the stress relief treatment is processed on the large floor boring and milling machine. In particular, the slide block is processed by vertical processing technology (because the working state of the slide block is vertical) so as to ensure the straightness of the upper die mounting surface of the slide block in the working state.
The machine has higher labor productivity and higher working accuracy for bending metal sheets, the use of different shapes of the upper and lower die, can be bent into a variety of shapes of the workpiece, the slider stroke can be a bending of the sheet material, after multiple bending can be obtained more complex shape of the workpiece, when equipped with the corresponding equipment, can also be used for punching.
Product Parameters

Machine tool type		WE67K-40T/2200
Nomal force		400 kN
Bending length		2200mm
Distance between columns		1850 mm
Throat depth		230 mm
Maximum system pressure		22Mpa
Slider motion	Stroke	200mm
	Fast down speed	180mm/s
	Return speed	110mm/s
	Work pacing	10mm/s
Slider motion accuracy	Positional accuracy	±0.03mm
	Repeated positioning accuracy	±0.02mm
Main motor power	Power	11 KW
	Rotate speed	1440r/min
Numerical control system	Model	DE15
Oil pump	Model	sunny
Bending accuracy	Angle	±30'
	Straightness accuracy	±0.7mm/m

Product Details
Standard ConfigurationCNC System:DE15The DE system uses a 15.6-inch full-color touch screen. The simple and easy to understand operation page provides a more user-friendly design for the bending machine industry. In some industries requiring high processing efficiency. It provides a variety of step changing conditions, and the flexible step changing mode makes the processing speed and efficiency increase exponentially.
Upper Tool Fast Clamp
·Upper tool clamping device is fast clamp
Multi-V Bottom Die Clamping(option)
·Multi-V bottom die with different openings
Backgauge
·Ball screw/liner guide are high precision
Front Support
·Front support moves along linear guide, hand wheel adjust the height up and down
·Aluminium alloy material platform ,attractive appearance, and decrease scratch of workpicec.

Optional Parts
Crowning Compensation for Worktable
· A convex wedge consists of a set of convex oblique wedges with a beveled surface. Each protruding wedge is designed by finite element analysis according to the deflection curve of the slide and worktable.
·The CNC controller system calculates the required compensation amount based on the load force. This force causes deflection and deformation of the vertical plates of the slide and table. And automatically control the relative movement of the convex wedge, so as to effectively compensate for the deflection deformation caused by the slider and the table riser, and obtain the ideal bending workpiece.
Quick Change Bottomm Die
·Adopt 2-v quick change clamping for bottom die
Lasersafe Safety Guard
·Lasersafe PSC-OHS safety guard, communication between CNC controller and safety control module.
· Dual beam from protection are point below 4mm below the tip of upper tool,to protect operator`s fingers;three regions(front,middle and real) of leaser can be flexibly closed,ensure complex box bending processing ;mute point is 6mm,to realize efficient and safe production.
Mechanical Servo Bending Help
· When mark bending support plate can realize the function of turning over following.following angle and speed are calculated and controlled by CNC controller,move along linear guide left and right.
· Adjust the height up and down by hand, front and rear can also be adjust manually to suit for different bottom die openning
·Support platform can be brush or stainless steel tube, according to workpiece size,two supports linkage movement or seperate movement can be chosed.
Show
Sample Show
Bending Mold Show
Company Profile
* About Jinan Lingxiu Laser Equipment Co., Ltd.
is established in July 2004, owns more than 500 square meters of researching and office space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia, Africa etc, more than 150 countries and areas,and supply OEM service for more than 30 manufactures.
Customer Visit
After-sales Team
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A:Could you tell me your materials:cs or ss and their thickness? And the biggest bending width? Then i will confirm the machine model for you. Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period. Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running. Q: Do you have any other machine style?A: Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.

---
