Stainless Steel Quartz Sand Water Filter Machine Sand Media Filter System Automatic Self Cleaning Filter Water Purifier Water Desalination Plant Price

Product Description

Product Description Working Principle
The shallow medium filter uses natural sea sand as the filter medium. Under a certain pressure, the water with high turbidity is filtered through a certain thickness of granular or non-granular natural sea sand, effectively intercepting and removing suspended solids, Organic matter, colloidal particles, microorganisms, chlorine, smell and some heavy metal ions, etc., and finally achieve a high-efficiency filtration device that reduces water turbidity and purifies water quality.
Product Features
1) The filter has two observation and inspection ports, the top is used for observation and feeding, and the bottom is used for emptying and maintenance. Each port adopts a completely leak-proof design. The system adopts the principle of hydraulic sealing, which is safe and reliable.
2) The unique 55 mushroom-shaped differential pressure compensation filter water collectors are the water pressure level of each part of the system in the filtering state. Balanced, high filtration flow rate and high efficiency, in the state of backwashing, an internal circulation is formed, and the backwashing efficiency is high and does not run off sand.
3) The water distributor makes the unfiltered water flow evenly through the packing layer even in the case of high flow, Maintain a flat water surface on the material layer.
4) The filter shell is made of stainless steel, steel lined with rubber or all plastic, with high efficiency and high pressure-to-weight ratio and corrosion resistance. The integral spherical shell can withstand the pressure of 0.59Mpa.
5) The inner layer of the filter is made of black polyethylene, which can resist environmental pressure, prevent embrittlement and not be affected by chemical substances Invasion.
6) For the pressure-compensated water collector, the opening near the middle is small, and the opening near the tail is large, so that the pressure from each water collector to the outlet is consistent. 7) Power saving: The system has a unique automatic backwash valve, the backwash of the sand filter tank is not carried out at the same time, but Under the normal operation of the system, backwashing is performed one by one, and there is no need to consider setting up a backwashing pump. At the same time, compared with other sand filtration equipment, the required lift of the filtration pump is 6-7m lower. 8) Water saving: due to its unique water replenisher and water collector, the system has unified specifications of the tank, so that the Compressed air is required to allow for a very uniform expansion of the media layer for effective backwashing. The water used for backwashing is filtered clean water, so the consumption of backwashing water is small. The backwash water flow of a single tank is only 1m3/min, and the backwash time is 60S. 9) Save maintenance costs: the whole system has no mechanical or electric valves, and only relies on unique multi-function valves to control the system backwash. Due to the unique multi-function valve has no wear and long life, no damage records within 10 years, and low management costs.
Product Structure

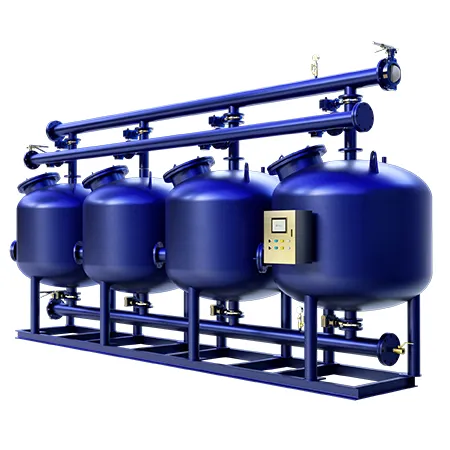

The fully automatic shallow sand filter has a spherical shell and a unique internal structure design to ensure smooth water flow during filtration and good filtration effect. Backwashing is the formation of numerous internal circulations, and the backwashing effect is high. Compared with the traditional sand filter, it has the advantages of automatic filtration, automatic backwashing, less sand and less water consumption.
Detailed Photos
Product Parameters

Type	BTSL1200	BTSL1400	BTSL1600	BTSL1800	BTSL2000	BTSL2200
Tank diameter(mm)	1200	1400	1600	1800	2000	2200
Inlet and outlet pipe diameter(mm)	DN100	DN100	DN100	DN150	DN150	DN150
Tank material	Carbon steel	Carbon steel	Carbon steel	Carbon steel	Carbon steel	Carbon steel
Tank anticorrosion	Electrostatic spraying	Electrostatic spraying	Paint corrosion protection	Paint corrosion protection	Paint corrosion protection	Paint corrosion protection
Single filter area(m2)	1.1	1.5	2	2.5	3	3.8
Filter speed(m/h)	20-35	20-35	20-35	20-30	20-30	20-30
Single processing capacity(m3/h)	20-40	30-50	40-60	50-75	60-90	70-100
Work pressure(MPa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Strong backwashL/(s.m2)	8-12	8-12	8-12	8-12	8-12	8-12
Single tank backwash duration(s)	60	60	90	120	120	180
Backwash interval(h)	4-8	4-8	4-8	4-8	4-8	4-8
4Backwash control differential pressure(MPa)	0.08	0.08	0.08	0.08	0.08	0.08
Filter type	sea sand	sea sand	sea sand	sea sand	sea sand	sea sand
Filter particle size(min./max.mm)	0.6-1.2	0.6-1.2	0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2
Filter thickness(mm)	800mm	800mm	800mm	200mm	200mm	200mm
Tank net weight(t)	0.4	0.5	0.6	1.5	2	2.3
Tank running weight(t)	3.5	4.5	5	13.5	16.8	21

Type	BTSL2400	BTSL2500	BTSL2600	BTSL2800	BTSL3000	BTSL3200
Tank diameter(mm)	240	2500	2600	2800	3000	3200
Inlet and outlet pipe diameter(mm)	DN200	DN200	DN200	DN200	DN250	DN250
Tank material	Carbon steel	Carbon steel	Carbon steel	Carbon steel	Carbon steel	Carbon steel
Tank anticorrosion	Paint corrosion protection	Paint corrosion protection	Paint corrosion protection	Paint corrosion protection	Paint corrosion protection	Paint corrosion protection
Single filter area(m2)	4.5	5	5.3	6.1	7	8
Filter speed(m/h)	20-30	20-30	20-30	20-30	20-30	20-30
Single processing capacity(m3/h)	90-135	100-150	110-160	120-180	140-210	160-240
Work pressure(MPa)	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Strong backwashL/(s.m2)	8-12	8-12	8-12	8-12	8-12	8-12
Single tank backwash duration(s)	200	300	300	300	500	600
Backwash interval(h)	4-8	4-8	4-8	4-8	4-8	4-8
4Backwash control differential pressure(MPa)	0.08	0.08	0.08	0.08	0.08	0.08
Filter type	sea sand	sea sand	sea sand	sea sand	sea sand	sea sand
Filter particle size(min./max.mm)	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2	2.0-4.0 0.6-1.2
Filter thickness(mm)	200mm 1000mm	200mm 1000mm	200mm 1000mm	200mm 1000mm	200mm 1000mm	200mm 1000mm
Tank net weight(t)	2.6	2.8	3	3.3	3.9	4.5
Tank running weight(t)	25	27	30	35	40	46

Certifications
Packaging & Shipping What about the package?
Answer: We use the safest packaging materials to protect every product, and the packaging meets the environmental requirements of export.

What about the transportation?
Normally, we ship products by sea and by air, it will depend on your address and the quantity of products you buy. Company Profile
Nanjing Beite Air Conditioning Equipment Co., Ltd. is a high-tech comprehensive enterprise specializing in the research and development, production, sales and after-sales service of HVAC water treatment equipment. Our company has two production plants, four standardized workshops and two office buildings, with a total area of 48,000 square meters. We mainly provide corresponding water treatment equipment for HVAC circulating water system with one-stop supply and service. Professional Production Line
Our Team
Exihibtion
Our Advantages
17 years of R & D and production experience in HVAC industry
Fast delivery, smart factory standardized production
24 hours on-line service, prompt and professional answering
Installation and comission support and professional after-sales service
Cost-effective Beite focus on high quality and inexpensive FAQ
Q1: Can I have a sample ?
A : Yes, welcome to place sample order to test and check quality. Mixed samples are also OK.
Q2: What is your lead time for production?
A : Generally Sample needs 1-3 days,mass production needs 15-30 days,also depands on your request.
Q3 : Can you accept mixed batch of different products?
A : Yes,we can provide different product mix wholesale.
Q4: What payment terms do you accept?
A :Trade assurance,TT,Western Union.
Q5 : What is the warranty for your products?
A :We provide one year warranty for the products..
Q6 : Are you trading company or manufacturer?
A :Yes,We are manufacturer.Welcome to visit our factory and check our pruducts.
Q7: What terms of payment do you accept?
A: Payment method:T/T,Paypal,western union.
Q8: What is your delivery time?
A: Delivery term:15-30 working days.

---
