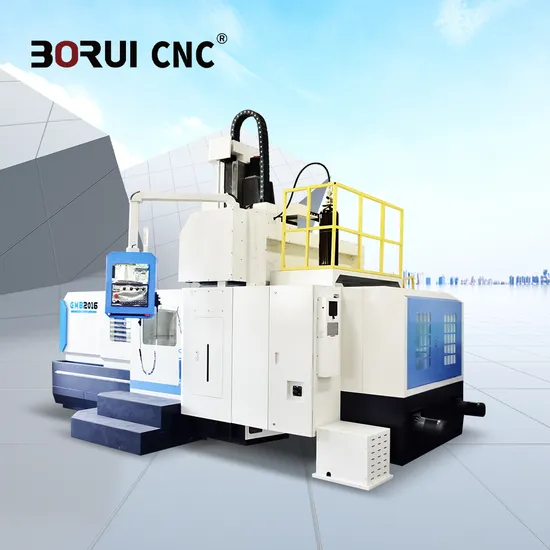

Gmb2016 Factory Price Low Cost Heavy Duty 3 Axis 4 Axis Vertical Gantry CNC Milling Machine

Product Description

Gmb2016 Factory Price Low Cost Heavy Duty 3 Axis 4 Axis Vertical Gantry CNC Milling Machine Product Description
The gantry machining center refers to the machining center in which the axis of the Z axis of the main shaft is perpendicular to the worktable. Especially suitable for machining large workpieces and workpieces with complex shapes. There are fixed beam type (beam fixed, worktable moving/rotating), moving beam type (beam moving up and down, worktable moving back and forth), moving column type (worktable fixed, gantry moving), crane type (worktable fixed, cross beam) Mobile) There are also multiple types of gantry machining centers in the above composite form. Gantry machining center adheres to the characteristics of traditional gantry machine tools with strong rigidity, symmetrical structure and high stability. Through finite element analysis, the structure of basic components is optimized, the dynamic performance of products is improved, and the perfect combination of high power, high torque, high efficiency and high precision machining is realized. . It is suitable for large and heavy processing fields such as ships, metallurgy, petrochemicals, mining machinery, electric energy, plastic machinery, construction machinery, and heavy industry machinery.
Product Parameters

Product number			GMB 2016	Unit
Workbench	working desk size		1400×2000	mm
	Distance between two columns		1600	mm
	Allowable maximum load		3000	kg
	T-slot size		22×7	mmxpcs
Processing range	X axis maximum stroke		2000	mm
	Y axis maximum stroke		1500	mm
	Z axis maximum stroke		700	mm
	Distance from spindle end surface to table surface	Max.	850	mm
		Min.	150	mm
Spindle	Main motor power		18.5	KW
	Main motor torque		113	NM
	Taper hole (7:24)		BT50
	Spindle speed range		40~6000	r/min
Feed	Cutting feed speed range		1~10000	mm/min
	Move quickly	X axis	20	m/min
		Y axis	20
		Z axis	16
Machine positioning accuracy	X axis	Executive standard:JB/T8771.4 -1998	0.025	mm
	Y axis		0.020
	Z axis		0.015
Repositioning resolution	X axis	Executive standard:JB/T8771.4 -1998	0.014	mm
	Y axis		0.012
	Z axis		0.010
Machine Weight			16000	Kg
Total electrical capacity			48	KVA
Machine tool outline size			6300×3050×4100	mm

Detailed Photos

Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
