Small Mini Excavator 08 16

Product Description

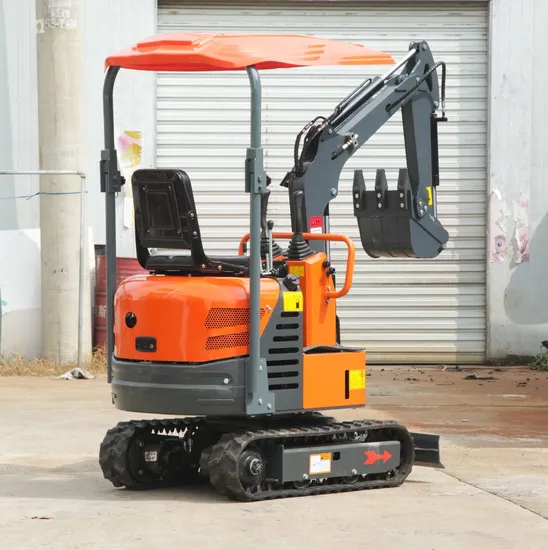

JY08 Mini Crawler Excavator Mini excavator JY08
With CE certificate
JIAYANG mini excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench etc. It is with compact design, easy to maintain. Lots of attachments can be used on this excavator which can expand their application scope.
08 mini excavator spicification:

Model	JY08
Manufacturer	YANCHENG JIAYANG MACHINERY Co., Ltd
Brand	JIAYANG
Operating Weight	880kg
Digging bucket capacity	0.025cbm
Bucket width	380mm
Engine	KOOP EUROP 5 STAGE EMISSION
Rated power	7.5 kw/3600r/min
Displacement	0.211 L
Bore stroke	70X55
Main pump	ZANEDA
Displacement	6.8ml/r
Hydraulic system pressure	16 MPa
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN (OMS-2450)
Travel speed	1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)	2770X896X1490 mm
Total length of track	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm

It is with unique design, compact and flexible. Suitable to be used in small area, small project, low oil consumption, connenient to use. With rubber tracks, can travel on any roads. Here are some main specification:

P. S. We also can supply the big machines, so if any need of these machines (EXCAVATOR (0.8 ton to 45 ton), both wheel excavator and crawler excavator, backhoe loader, concrete pump, forklift, skid steering loader, wheel loader, roller etc ), contact me freely. I will serve you well.

---
