Shanding 250kg Double Mast Aluminum Alloy Lift Table Working Platforms for Sale

US$1,000.00-9,980.00 1 Piece (MOQ)

Basic Info.

Model NO.
GTWY- SERIES
Application
Workshop Crane, Shipboard Crane, Warehouse Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Light Level
Moves
Self-propelled
Driven Type
AC
Running Mode
Moving
Feature
Explosion-Proof
Certification
ISO 9001
Rated Loading
100~300kg
Rated Lifting Height
4-20m
Table Size
650*650mm
Rated Power
2kw
MOQ
1 Unit
Transport Package
Poly Wood Box
Specification
4M-16M
Trademark
SHANDING
Origin
Shandong, China
HS Code
8428109000
Production Capacity
100pieces Per Week

Product Description

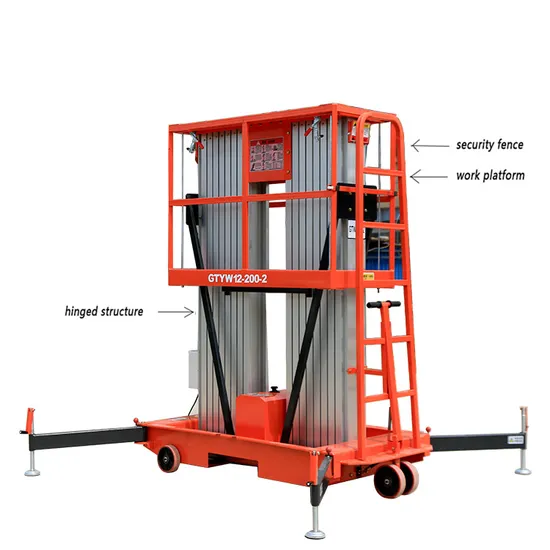

SHANDING GTWY-SERIES LIFTING TABLE
Our Lift Table is designed off the feedback of numerous workshops around the country in need of a lift table that is smaller and not so high price point. With the small table, it's much easier to move around within the shop and much easier to find a storage location for it. What makes it unique? It's made to work on WALMARKER,BESTBUY and many other manufactures, making this table versatile for any job!
MAIN PARAMETERS:
MODEL NO GTWY6-200-2 GTWY8-200-2 GTWY10-200-2 GTWY12-200-2
MAX WORKING HEIGHT 8M 10m 12m 14m
MAX HEIGHT OF WORKING TABLE 6m 8m 10m 12m
RATED LOADING 300kg 300kg 250kg 200kg
WORKING TABLE SIZE 1200*630*1100MM 1200*630*1100MM 1500*630*1100MM 1500*630*1100MM
OVERALL SIZE 1553*850*2000MM 1553*850*2000MM 1553*850*2000MM 1553*850*2000MM
MIN GROUND CLEARANCE 60mm 60MM 60MM 60mm
WHEELBASE 1.23m 1.23m 1.23m 1.23m
RATED POWER OF RISING MOTOR 220V/1.5kw 220V/1.5kw 220V/1.5kw 220V/1.5kw
SPEED OF RISE &DECLINE 3-5m/min 3-5m/min 3-5m/min 3-5m/min
WEIGHT 510kg 590kg 690kg 730kg



WORKINGSHOW:
