Cpacity 100-500m3 Particleboard Chipboard Making Machine From China Factory

Product Description

Cpacity 100-500m3 Particleboard Chipboard Making Machine from China Factory
<1> What is Particleboard Making Machine?
Particle board making machine for making particle board, the full line mainly includes:
Debarking → Wood chipper/crusher → Flaking → Drying → Screening → Gluing → Forming → Continuous pressing → Cooling → Sanding → Sizing -Packing.
What is Particle board? And what is its function and application?
Particle board be made by wood, wood trunks, straw
The major advantage of selecting particle board is that:
> it is a cost-effective option against plywood or medium density fiberboards.
> Laminated particle boards and veneered particle boards provide decorative looks in low price as compared to plywood.
> It provides smooth and flat surface for sticking decorative laminates or wood veneer.
> This particle board is stronger and aesthetically attractive. Thus laminated particle board and veneered particle boards are now used in mass production of office furniture.
> Due to its lightweight property, particle board can be easily transported and handled.
> Particle board has more screw holding capacity as compared to MDF, so it is widely used to make furniture which can be assembled using screws.
> It requires minimal maintenance and is easy to clean.
> Particle boards have thermo-acoustic insulation properties, so they are very much useful in speakers and in false ceiling of auditoriums, theaters, etc.
> It is an eco-friendly material as it uses wood waste such as wood chips, sawdust, wooden shavings, and bagasse which is residue of sugarcane after the juice is extracted.

<2> Mainly Particleboard Machine Introduction

Rotary drum dryer, for drying the wet wood strands/shavings, because their original moisture is high, it is not suitable for making particleboard, therefore, after be dryed by drum dryer, their end moisture will be about 2%, it is suitable and good for making particle board.
Glue blender, For spreading glue on wood strands, seperately spreading glue on surface strands and core strands
Mat forming machine, for spreading glue on wood strands, seperately spreading glue on surface strands and core strands

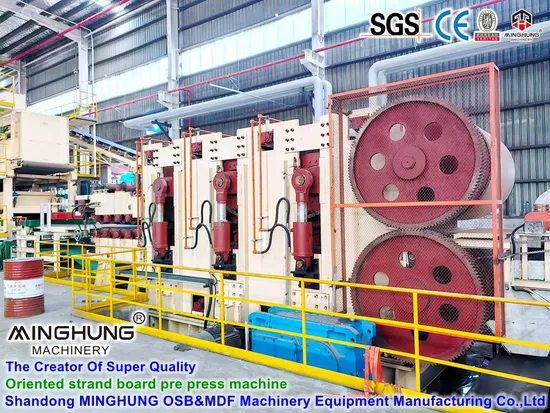

Continuous pre press machine, for pre pressing the particle board and make it be forming, also discharge inside air.
Multi opening hot press machine, for pressing the particleboard be in required thickness and be solid and strong.
<3> Specification of the Full Particleboard Production Line
<1> Drum Chipper

Inlet size	240*750mm(H*W)
Blade quantity	2pcs
Knife roll diameter	800mm
Power	132kw

<2> Ring Chipper

Wood strands thickness	0.4-1.0mm
Capacity	5000-8000kg/h
Knife length	449mm
Power	250kw

<3> Triple Pass Drying Machine

Cpacity	10000kg/h
Original moisture	≤80%
End moisture	2%
Power	440kw

<4> Vibrating screen

Screening cloth	2
Screening area	12 m2
Screening capacity	70m3/h
Power	11kw

<5> Gluing

Capacity	500m3 /per day
One set for spreading glue on surface strands One set for spreading glue on core strands

<6> Forming machine

Surface forming machine	2 sets
Capacity	2 *45m3/h
Core forming machine	1 sets
Capacity	65m3/h
Forming width	1300mm
Forming thickness	30-120mm

<7> Continuous press

Convey speed	10-30m/min
Working height	1250mm
Belt width	1500mm
Power	75kw

<7> Hot press

Pressure	1200 ton
Hot plate size	2650*1680*120mm
Layers	22
Heating medium	Oil
Heating temperature	≤180ºC
Closing time	10s

<8> Sanding machine

Max sanding width	1300mm
Sanding thickness	3-50mm
Sanding belt size	1350*2800mm

Please note: each machine can be different specification according to different production capacity, panel size and other factors.

<4> Who We Are?
We China manufacturer and supplier of Particle board making machine+ MDF board making machine +OSB board making machine. if you want to produce these board, we can offer you the full necessary production line.
With many years production experience, and adhere to continuous innovation and improvement, with specialized R&D center, obtained a number of research and development patents, with experienced technians and engineers, and professional sales team and after-sales team, We have beome one China's high-end Wood based panel machinery manufacturing enterprise.
According to your own conditions like the budget, factory room and other factors, we can offer you the suitable, good and high quality machine for help you produce good quality panel.
For us, we know clearly that only keep machine good quality, can let us develop longer and better. Therefore, we always keep to choose good material and parts to make our machine, and during the whole machine production process, be made by experienced workers, and through many times test and monitor, to make sure each production step is good, to make sure the whole machine is good
<5> Share our machine loading pictures
<6> Related OSB board Making Machine
OSB board forming line
OSB board glue machine
If you want OSB board, our factory also can offer the full production line for you

<7> Questions about our particleboard machine you may want to know
<1> Machine Installation:
We can send engineers go to install machine, degue, and teach your workers
<2> Warranty:
15 months
<3> Production time:
3 months
<4> Payment terms:
T/T or L/C
<5> Factory layout:
After machine production start, we can make factory layout for you
<6> If meet problem when operation machine
Contact us at the first time, our engineers will help check and solve quickly
