| Specification | Unit | Model XL6236 | |
| Spindle taper | 7:24 ISO40(V) 7:24 ISO50(H) | ||
| Distance from spindle center line to column surface | mm | 350~850 | |
| Distance from spindle nose to worktable | mm | 210~710 | |
| Distance from spindle center line to worktable | mm | 0~500 | |
| Distance from spindle center line to arm | mm | 175 | |
| Spindle speed | r/min | 11steps 35~1600 (V) 12steps 60~1800 (H) | |
| Worktable size | mm | 1250×360 (1500x360) | |
| Worktable travel | Longitudinal | mm | 1000 |
| Cross | mm | 320 | |
| Vertical | mm | 300 | |
| Worktable longitudinal/ cross power feed | mm/min | 8steps 15~370 Rapid 540 | |
| Worktable elevating power feed | mm/min | 590 | |
| Worktable "T"slot | Number | mm | 3 |
| Width | mm | 18 | |
| Distance | mm | 80 | |
| Main motor | Kw | 2.2 (V) 4 (H) | |
| Worktable power feed motor | W | 750 | |
| Worktable elevating motor | KW | 1.1 | |
| Coolant pump | W | 90 | |
| Coolant flow | L/min | 25 | |
| Overall dimension (L×W×H) | mm | 2220×1790×2040 | |
| Net weight | kg | 2400 | |
| Specification | Unit | Model XL6226 |
| Spindle taper | 7:24 ISO40 | |
| Distance from horizontal spindle to worktable | mm | 100-500 |
| Distance from horizontal spindle to supporting | mm | 0-500 |
| Spindle speed range | r/min | 35-1600 |
| Swivel angle of swivel head | 360° | |
| Table size | mm | 1120× 260 |
| Table travel(x/y/z) | mm | 580/270/400 |
| Range of longitudinal,cross travel | mm/min | 18-308(8steps) |
| Vertical up-down(z axis) speed table | mm/min | |
| T-slot NO./width/distance of rotary table | mm | 3/14/63 |
| Main motor | KW | 2.2 |
| Motor for rapid device of table | W | 250 |
| Motor of lifted table | W | |
| Motor of cooling pumps | W | 90 |
| Speed of cooling pumps | L/min | 25 |
| N.W/G.W. | kg | 1150/1300 |
| Overall dimension | mm | 1665×1500×1750 |

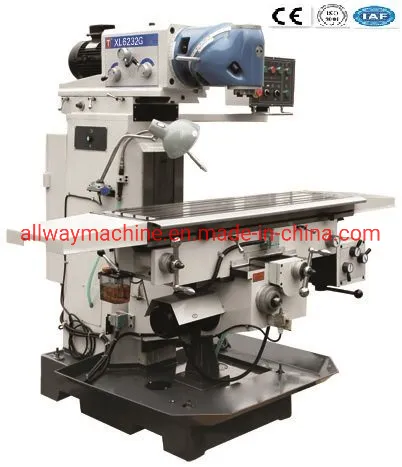

| Specification | Unit | Model XL6232 |
| Spindle taper | 7:24 ISO40 | |
| Distance from horizontal spindle to worktable | mm | 120-490 |
| Distance from horizontal spindle to supporting | mm | 0-500 |
| Spindle speed range | r/min | 35-1600 |
| Swivel angle of swivel head | 360° | |
| Table size | mm | 1250×320 |
| Table travel(x/y/z) | mm | 600/320/370 |
| Range of longitudinal,cross travel | mm/min | 22-555(8 steps)810(max.) |
| Vertical up-down(z axis) speed table | mm/min | 560 |
| T-slot NO./width/distance of rotary table | mm | 3/14/70 |
| Main motor | KW | 2.2 |
| Motor for rapid device of table | W | 750 |
| Motor of lifted table | W | 750 |
| Motor of cooling pumps | W | 90 |
| Speed of cooling pumps | L/min | 25 |
| N.W/G.W. | kg | 1320/1420 |
| Overall dimension | mm | 1700×1560×1730 |
