Product Description
Product Description

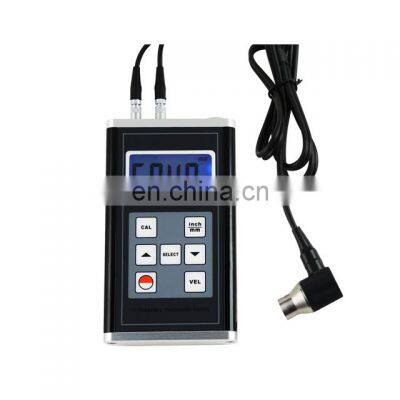

Model : TM-8818Handheld Ultrasonic Thickness Gauge with metal case and test range from 0.9~400mm. Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, and more in industries of petroleum, ship building, power station and machine manufacturing. It uses the latest high performance and low power consumption microprocessor technology.Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.Features:Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement.With high power of emission and broad of receiving sensitivity, the gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron.Bidirectional measurement, for materials within measurement range, thickness is measurable with know velocity, Conversely velocity is measurable with know thickness.Automatic memory material code and sound velocity value, convenient to useAutomatic power off to conserve battery powerCan communicate with PC computer for statistics and printing by the optional cable and the software for RS232C interface (not included in the set).Has CE marking, conforms with the essential health and safety requirements set out by the European Directives Specifications:Display: digital 4 digit LCDOperating principle: ultrasonicRange: 0.9~400mm (45# steel) RResolution: 0.1mm / 0.01mm / 0.001 inchAccuracy: ±1 (0.5%n+0.1)Sound Velocity: 1000~9000 m/sPower off: auto and manual power offBattery indicator: low batteryPower Supply: 2 x 1.5V AA (UM-3) battery (not included in the set)Operating Condition:Temperature: 0~40°CHumidity: <80%Case material: aluminum alloySize: 130 x 76 x 32mmWeight: about 340g (excluding batteries)Set Includes:1 x Digital Ultrasonic Thickness Gauge1 x Ultrasonic Sensor1 x Coupling agent (Glycerin)1 x English Operation ManualCarrying CaseStandard Factory PackagingCompany InformationDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical. We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc. We thank you for visiting our Web Site and look forward to the opportunity of being of service to you. Contact us
>>
