Marble/Granite Tile Stone Cutting Machine Manufacture 5 Axis CNC Bridge Sawing Machine

Product Description

Product Description

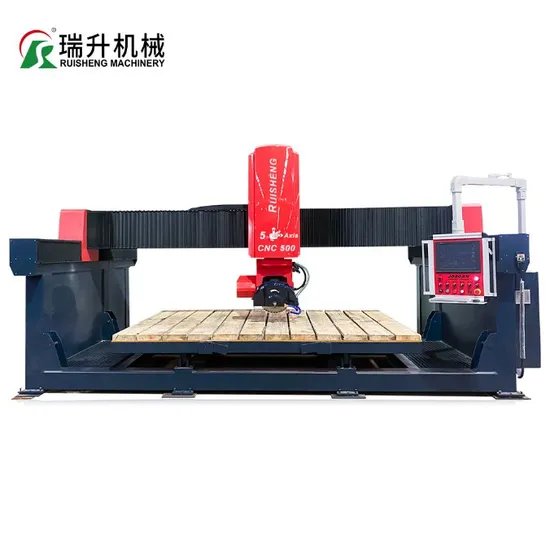

RCNC-500 with 4 axis interpolation and 1 axis electronic controlled, is a multifunctional CNC stone cutting and shaping machine built with the needs of workshops in mind, combining simplicity with maximum versatility for a minimum investment budget. It is popularly used for cutting slabs and blocks of both natural and synthetic stone, and ceramic.
* make vertical, inclined& horizontal Cut with Disc Blade
* cut curves with Contour Cutting
* machine with the Core Tool such as drill, end mill & excavation wheel
* Incremental routing for sink cutting, profiling & engraving
Match these capabilities with Italian ESA CNC system, digital servo motors and CAD CAM drawing software to make all kind of cuts with ease.

Name	RCNC400-5	Unit
Diameter of saw blade	ø400-ø500	mm
Dimension of working platform	3300x2000	mm
Max. cutting length	3300	mm
Max. cutting thickness	140	mm
Power of cutter frame reciprocating motor	3	kw
Power of crossbeam shifting motor	1.2	kw
Power of hydraulic station motor	2.3	kw
Power of lifting motor	0.88	kw
Max. lifting stroke	300	mm
Power of main motor	15/18.5	kw
Gross power	27/30	kw
Power of cutter frame reciproctating motor	2	kw
Water consumption	3	m³/h
Dimensions	5800×3400×3000	mm
Gross weight	6000	kg

---
