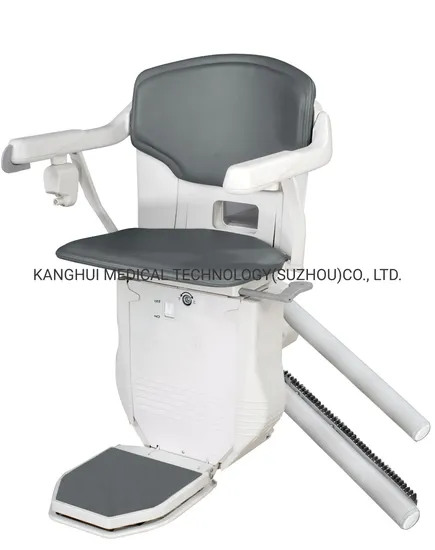

Customized Home Use DC Powered Passanger Stair Chair Lift

Product Description

General Introduction
Intelligent stair lift can help aged or disabled people go up or go down the stair by themselves.This product is easy for installation.
It only occupies rail which on the left or right of stair to function. It will not ruin any family facility, especially suit for decorated family.
The structure of stair lift is made of steel, aluminium alloy castings and inflaming retarding plastic. It is safety and beautiful.
Function Review

Technicial Parameter

Safety load	120kg	Noise(on max load)	75dbA
Rail max rising angle	52°	Distance between stair surface and rail	800mm
Rise speed	6.8m/min	Drive motor power	300 w
Steel tube diameter of rail	45mm	power	DC 2*12v-7Ah
Distance between wall and rail	130mm	Driving mode	Gear and track

Accessories
Remote control:2 pcs with AAA battery
Emergency operation handle:1 pc
Recharger:1 pc
(Power input: AC100-240V, 50-60HZ Power output: DC 24V, 750mA)
