AC Gear Motor for Transportation

Product Description

1.Product Description

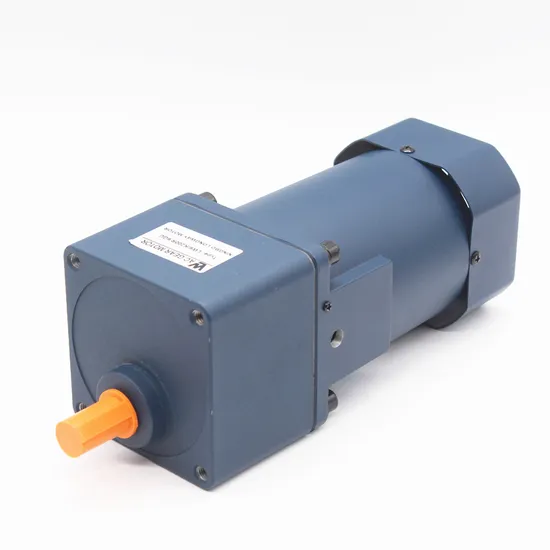

AC gear motor
Typical Applications:Industrial equipment, Agricultural
machinery, Entertainment equipment, Transportation
Motor specification:

Model of Motor		Output	Voltage	Frequency	Poles	Duty	Rated				Starting Torque		/Capacitor/Ve
							Speed	Current	Torque
		W	V	HZ	P		rpm	A	N.m	kg.cm	N.m	kg.cm	μf/VAC
5IK40A-A	5IK40GN-A	40	1ph110	50	4	CONT	1350	0.64	0.29	2.85	0.25	2.50	10.0/250
5IK40A-C	5IK40GN-C	40	1ph220	50	4	CONT	1350	0.29	0.29	2.85	0.28	2.50	2.5/500
5IK40A-S	5IK40GN-S	40	3ph220	50	4	CONT	1300	0.38	0.29	2.90	1.15	11.5	/
5IK40A-S3	5IK40GN-S3	40	3ph380	50	4	CONT	1300	0.22	0.29	2.90	1.15	11.5	/
5IK40A-D		40	1ph220	50	2	CONT	2800	0.35	0.15	1.45	0.13	1.25	3.0/500

Frequency	Reduction Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60
50HZ	Output Shaft Speed	rpm	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25
	Allowable Torque	N.m	0.68	0.82	1.14	1.37	1.72	2.06	2.29	2.86	3.43	4.13	4.59	5.16	6.20	7.44	8.26	9.80	9.80
		kg.cm	6.94	8.37	11.6	14.0	17.6	21.0	23.4	29.2	35.0	42.1	46.8	52.6	63.3	75.9	84.3	100	100
60HZ	Output Shaft Speed	rpm	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30
	Allowable Torque	N.m	0.58	0.70	0.97	1.16	1.45	1.74	1.93	2.41	2.90	3.48	3.87	4.36	5.23	6.28	6.97	8.72	9.46
		kg.cm	5.92	7.14	9.90	11.8	10.8	17.7	19.7	24.6	29.6	35.5	39.5	44.5	53.4	64.1	71.1	89.0	96.5

Frequency	Reduction Ratio		75	90	100	120	150	180	200	300	500
50HZ	Output Shaft Speed	rpm	20	16	15	12	10	8	7.5	5	3
	Allowable Torque	N.m	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80
		kg.cm	100	100	100	100	100	100	100	100	100
60HZ	Output Shaft Speed	rpm	24	20	18	15	12	10	9	7.2	3.6
	Allowable Torque	N.m	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80	9.80
		kg.cm	100	100	100	100	100	100	100	100	100

2.Production Flow
3.Company Information In recent ten years, Derry has been dedicated to the manufacture of the motor products and the main products can be classified into the following series, namely DC motor, DC gear motor, AC motor, AC gear motor, Stepper motor, Stepper gear motor, Servo motor and Linear actuator series.
Our motor products are widely applied in the fields of aerospace industry, automotive industry, financial equipment, household appliance, industrial automation and robotics, medical equipment, office equipment, packing machinery and transmission industry, offering customers reliable tailored solutions for driving and controlling.
4.Our Services
1). General Service:

Quick Reply	All enquiry or email be replied in 12 hours, no delay for your business.
Professional Team	Questions about products will be replied professionally, exactly, best advice to you.
Short Lead time	Sample or small order sent in 7-15 days, bulk or customized order about 30 days.
Payment Choice	T/T, Western Union,, L/C, etc, easy for your business.
Before shipment	Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
Language Choice	Besides English, you can use your own language by email, then we can translate it.

2). Customization Service:Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
5.Package & Shipping
6. contact us.

---
