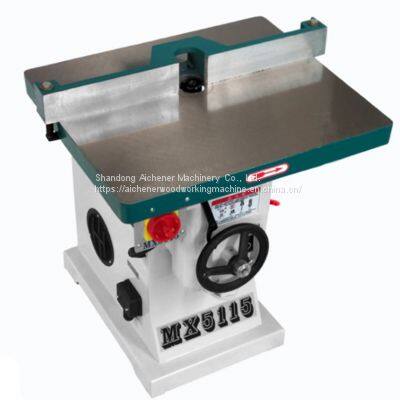

Introduction of MX5115 Vertical wood shaper Spindle Moulder machines for sale
Wood shaper is applied to milling planes, grooves, teeth, threads and spline shafts, milling machines can also process more complex curved surfaces,trimming with high efficiency and It can be used to install all kinds of boring and milling tools, chamfering the workpiece, cutting straight grooves, straight lines, sliding the table to the T-slot, etc. It is the first choice for solid wood,Acrylic and panel furniture.
Parameter of MX5115 Vertical wood shaper Spindle Moulder machines for sale
Model
MX5115
Product name
Vertical single axis milling machine
Table tilt angle
45 degree
Knife handle diameter
6.3/12.7mm
Spindle speed
18000r/min
Table size
640*580mm
Motor power
2.2kw/3Kw
Max. processing thickness
50mm
Elevator travel
100mm
Dimension
780*710*900mm
Weight
150kg
Customized is acceptable
Feature of MX5115 Vertical wood shaper Spindle Moulder machines for sale
1. cast iron countertops, fine workmanship, wear-resistant shock absorption
2. Pure copper motor, locking spindle and precision sleeve shrink lock mouth, high precision and safe to use.
3. Adjust the handwheel, knob switch, the table can be tilted 45 degrees, safe and convenient.
