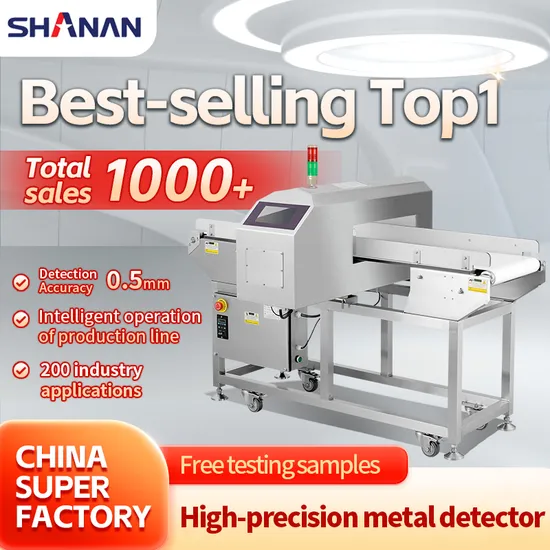

High Sensitivity Industrial Conveyor Belt Tunnel Frozen Snacks Factory Food Metal Detector

Product Description

Product Description
Industrial High Sensitivity Food Metal Detector With Conveyor Belt Tunnel For Meat Bakery Snack Food Description of Food Metal Detector: The Industrial Food Metal Detector is a high-performance metal detection system designed for use in food processing and packaging. This metal detector is capable of detecting metal contaminants in a wide range of food products, including meat, bakery, and snack foods. The metal detector features a high-sensitivity conveyor belt tunnel, which ensures that all food products pass through the metal detector, regardless of their size or shape. It is designed to provide reliable and efficient metal detection for the food processing industry.
Application of Food Metal Detector: Detect metal impurities in products or raw materials in the production and processing of food, medicine, toys, clothing, shoemaking, chemicals, leather, knitting and other industries. Such as: iron and non-ferromagnetic metal objects (iron, copper, aluminum, stainless steel and other non-ferrous metals can be detected), improve product safety factor, and improve enterprise product quality.
Product Features of Food Metal Detector: 1. The core part is carefully developed with leading digital technology and original imported chips. The inside of the detection coil is formed by potting at one time. It has the characteristics of high detection accuracy, stable performance, and strong anti-interference ability.
2. It can be produced in a variety of frequencies according to product characteristics, and has a product testing data storage function, which can store more than 200 product testing data and has a wide range of applications.
3. Using intelligent recognition technology, with self-learning and memory functions, it can automatically recognize and remember product characteristics, and effectively eliminate the interference caused by various "product effects".
4. Simple and friendly operation interface, using a dialogue LCD display, you can quickly and conveniently set parameters through a simple key control interface; it can detect a variety of products containing different product signals (characteristics), and one setting can guarantee high The detection accuracy does not need to be re-adjusted and set up the program.
5. Modular component replacement, convenient and quick maintenance.
6. Meet the requirements of HACCP, GMP and FDA.
7. Shockproof and waterproof design, dustproof and waterproof function in line with IP-66/IP-65 international certification, anti-vibration and noise absorption, can adapt to harsh working environments.
8. Various reject devices (such as flaps, air blows, push rods, etc.) and a lightweight, large-package special and heavy-duty body design can be adopted according to user needs.
Product Parameters
Food Metal Detector Parameters

Model		SA-990
Machine length (mm)		1330~2000 (can customize)
Detection tunnel width (mm)		200~1200 (can customize)
Detection tunnel height (mm)		50~1000 (can customize)
Standard detection sensitivity	FE(Φmm)	≥0.5
	NON-FE(Φmm)	≥0.8
	SUS304(Φmm)	≥1.0
Protection level		IP67
Number of memory products		200+ kinds
Display mode		Touch Screen
Operation mode		Touch button input
Alarm mode		Alarm stop, buzzer alarm or rejector device optional
Machine material		Stainless steel 304, fit for HACCP, GMP, FDA, CAS and other standards
Conveyor belt material		Food grade PVC or PU belt
Machine weight		About 280KG
Motor		90~370W
Transfer speed		10-28m/min (optional and adjustable)
Power supply		AC220V±10%, 50-60HZ (Customize AC110V or AC380V)
Belt height above the ground (mm)		700+100 (can customized)
Maximum load (single piece)		10~50KG (can customized)
Using environment		Temperature: -15ºC~40ºC, relative humidity: 30~85RP
