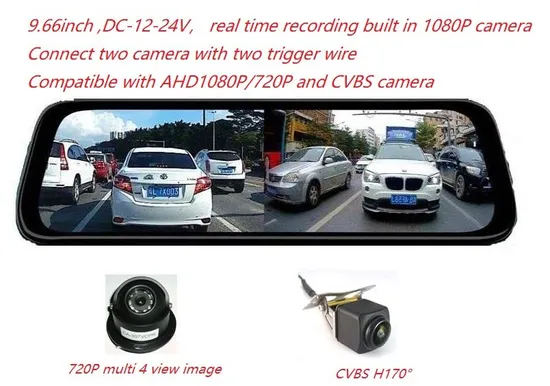

9.66inch Stream Media Car Crash Camera Rear View Mirror Monitor Recorder DVR

Product Description

Product Description SL-966 is a new developing product , compare with normal 9.66inch stream media in market , it has following improvement and difference :
--It is also good for VAN/truck , the harness is professional screw connector type , support two 12V camera input and two trigger wire . ( normal type only support 1pcs 5V TVI camera input )
--Monitor is 12-24V input .
--support two channel recording with GPS trajectory ,footage playback by APP
--support CVBS and AHD 1080p camera input
--IPS panel with touch panel Product Parameters

size	9.66 inch ,IPS panel
resolution	1280RGB(H)*320(V)
brightness	600cd/m2
view angle	85/85/85/85
touch panel	support image drag
main chip	Mstar8339D
frequency	ARM Cortex-A7 single Core 800MHZ
RAM	8MB
OS	Ucos
Language	Multi language of MENU
signal input	two channel , (CVBS/720P/960P/1080P mix input)
	default show is duplix split
audio input	built in speaker for AV 1 , support AV2' audio input
built in speaker	0.5W
trigger wire	AV1 and AV2 (priority AV2>AV1 )
recording	H.264
footage format	MOV
picture format	JPG
footage resolution	1080P(FHD1920x1080),720P(HD1280x720)
picture format	8M(3264x2448),5M(2592x1944),
storage of footage	TF card(Class10 or better), 8G--128GB
optional	mobile APP connect monitor by WIFI , to check footage , GPS trajectory
firmware update	By TF card
voltage input	DC12V~36V
work temperature	-20ºC- +70ºC,RH65%
storage temperature	-30ºC- +80ºC,RH65%
Installation	metal bracket with suction base
