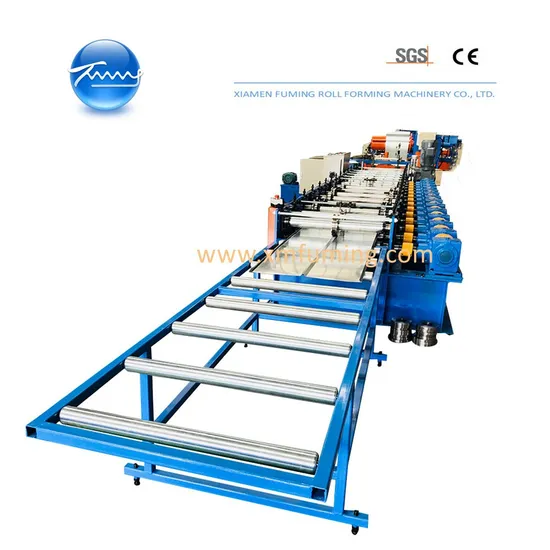

| ROLL FORMING MACHINE FOR WIDTH ADJUSTABLE RIDGE CAP PROFILE |
|
| Drawing |
| |
| Material Specification |
| Thickness | 0.38mm to 0.45mm |
| Material | PPGI, GI |
| Feeding width | 444mm to 762mm |
| Yield strength | 550MPa or customized |
| |
|
| Machine Components |
| 5Ton*1250mm Hydraulic Decoiler |
| Coil inner hole expanding | Hydraulic system, 3KW pump motor |
| Speed regulating | Frequency inverter, 3KW motor |
| Expanding type | Taper wedge expanding system |
| Load capacity | Max.5Tons |
| Coil inner diameter | 510±30mm |
| Coil outer diameter | Max.1600mm |
| Coil width | Max.1250mm |
| Stop/start rotation | Automatic stopping device with limited switch to assist |
| Option | Please refer to Decoiler on home page |
| |
| Power Feed-in Device |
| Motor | 1.5KW |
| |
| Hydraulic Flying Cut, Servo Motor Driving |
| With linear rail to guide and ball screw to adjust |
| Servo motor | 5KW |
| Hydraulic station | 7.5KW |
| |
| Roll Forming Machine | |
| Driving system | Gear box |
| Forming station | 14 stations |
| Roller material | Cr12, heat treatment |
| Option for roller material | Cr12Mov |
| Shafts Diameter | Φ75mm |
| Main motor | 15KW, frequency speed control |
| Size changing | Screw adjusting manually |
| Line speed of rollformer | Approx. 38m/min or customized |
| |
| PLC Control System |
| Function | Control quantity and and cutting length automatically |
| PLC | Siemens |
| Touch screen | Siemens |
| Inverter | Schneider or Delta |
| Encoder | Omron |
| Cut-to-length tolerance | ≤±2mm or customized |
| Control Voltage | 24V |
| |
| Product Rack | 3 meters×2 |
