Screw/Bolt Making Machine, Thread Rolling Machine, Cold Heading Machine, Screw Heading Machine

Product Description

Screw/Bolt Making Machine, Thread Rolling Machine, Cold Heading Machine, Screw heading machine
XUCHANG HUARUI MACHINERY CO., LTD
Company introduction
Xuchang Huarui Machinery Co., Ltd. was established in 1990, and already with 13 years exporting experiences. We have our own R&D team. After years of improvement and development, the machine has stable performance, convenient operation, high efficiency and speed, reasonable price and high cost performance.
After years of pragmatic innovation, exploration and development, Xuchang Huarui Machinery Co., Ltd. has developed from a small machinery factory into a large-scale and well known machinery company.
Our main products are screw making machine, thread rolling machine, bolt nut forming machines, Barbed Wire making machine, Wire nail making machine, roofing nail making machine, coil nail making machine, wire drawing machine, nail polishing machine, and auxiliary equipment, etc.
We stick to the principle of "Quality First, Customer Uppermost", and ensure quality first, service first. In order to service customers best, the warranty of all our products are two years. We are ready to join hands with our friends for establishing a bright future.
Product Description
Product Description

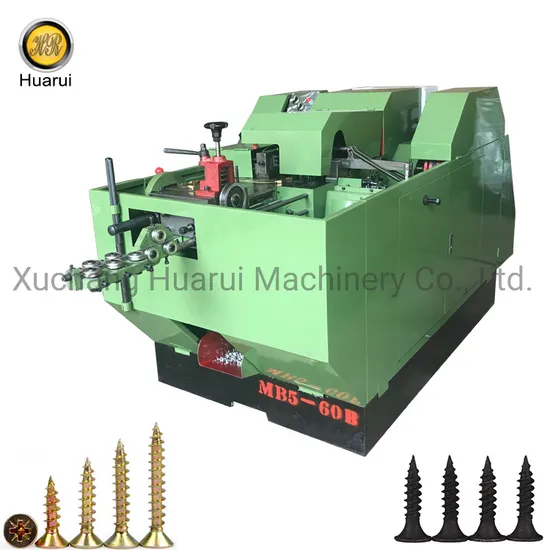

1. Screw bolt heading forming machine
This equipment adopts cold heading way to make the wire rod upsetting by double-click the whole mould form. Finished Feeding, straightening, cutting material, forming, discharging by one machine.
Main technical parameters:

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Capacity (pcs/min)	Motor (kw)	Weight (Ton)	Overall size (m)
M3-28A/B	3	28	160-180	0.75/0.37	0.6	1.3*0.75*0.9
M4-28B	4	28	120-160	1.5/0.37	0.97	1.5*0.9*0.9
M4-28D	4.5	28	180-200	1.5/0.37	1.2	1.6*1*1.2
M4-40B	4	40	120-150	1.5/0.37	0.97	1.5*0.9*1
M4-40D	4.5	40	180-200	1.5/0.37	1.2	1.6*1.1*1.1
M5-40B	6	40	120-150	2.2/0.37	1.8	1.8*1.1*1.1
M5-60B	6	60	110-140	2.2/0.37	1.8	1.8*1.1*1.1
M5-80B	6	80	80-100	2.2/0.37	1.9	2*1.1*1.2
M5-100B	6	100	60-80	3/0.18	2.1	2.4*1.2*1.2
M5-120B	6	120	50-70	3.6/0.37	2.3	2.8*1.3*1.3
M6-60B	8	60	80-110	4/0.37	2.8	2.3*1.3*1.3
M6-100B	8	100	60-90	4/0.37	2.7	2.3*1.3*1.3
M6-120B	8	120	60-70	4/0.37	3	2.4*1.3*1.4
M6-170B	8	170	40-70	4/0.37	3.7	3*1.3*1.5
M6-200B	8	200	40-55	4/0.37	3.7	3*1.3*1.5
M8-120B	10	120	50-90	5.5/0.37	4.6	3.4*1.5*1.5
M8-130B	10	130	50-90	5.5/0.37	4.6	3.4*1.51.5
M8-130C	10	130	50-90	5.5/0.37	4.6	3.4*1.51.5
M8-150C	10	150	40-50	5.5/0.37	5	3.5*1.7*1.7
M8-200B	10	200	25-60	7.5/0.37	6	3.8*1.6*1.7
M10-120B	12	120	40-70	11/0.75	7	3.3*1.71.7
M10-170C	12	170	40-60	11/0.75	7.5	4.2*1.81.7
M10-220C	12	220	35-60	11/0.75	7.5	4.2*1.81.7
M10-250C	12	250	30-45	11/0.75	8.5	5*1.8*1.7
M10-300C	12	300	25-35	15/0.75	9	5*1.9*2.1
M10-360C	12	360	20-30	15/0.75	12	6.7*2*2.6
M12-150C	14	150	40-50	15/0.75	10	3.9*1.9*1.8
M12-250C	14	250	35-50	15/0.75	11	5.3*2.2*1.9
M14-150C	16	150	40-50	11/0.75	10	4.5*2.2*2.15
M14-250C	16	250	35-45	15/0.75	11	5*2.2*2.15

2. Full automatic thread rolling machine(flat die type)
This equipment adopts two thread profile thread rolling die staggered 1/2 screw distance design, dead plate is fixed, movable plate equal to dead plate do straight line motion back and forth, when the work piece feed between two plates, movable plate move forward twist work piece, make its surface plastic deformation into thread.
Thread rolling machine is portable, flexible, high efficiency and has some irreplaceable advantages compared with similar equipment, avoid the limit of lathe, drill or hand tapping, save time, labor, not easy to rotten teeth, screw tap not easy to break off.
The machine is easy to operate, convenient to maintenance, which greatly decrease the technical requirements for workers.
Main technical parameters:

Model	Max. Screw Dia (mm)	Max. Screw length (mm)	Motor (kw)	Capacity (pcs/min)	Weight (Ton)	Overall size (m)
R3-20A	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
R3-20B	M2.6	20	1.1	350	0.3	1.1*0.53*1.2
R4-25A	M4	25	1.5	320	0.45	1.3*0.63*1.32
R4-25B	M4	25	1.5	320	0.45	1.3*0.63*1.32
R4-40A	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
R4-40B	M4	40	2.2/0.37	280	0.97	1.5*1.15*1.35
R5-55B	M5	55	3+0.37	160	1.2	1.6*1.35*1.7
R5-65A	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
R5-65B	M5	65	3+0.37	130	1.3	1.75*1.4*1.65
R6-60A	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
R6-60B	M6	60	4/0.37	180	1.5	1.7*1.65*1.3
R6-100B	M6	100	5.5+0.37	110	1.9	2.7*1.3*1.3
R8-80B	M8	80	5.5/0.37	110	1.8	2.1*1.55*1.3
R8-100B	M8	100	7.5+0.37	100	2.1	2.7*1.7*1.3
R8-120B	M8	120	5.5	100	2.1	2.4*1.8*1.4
R10-120B	M10	120	7.5	80	1.8	2.35*1.95*1.4
R12-120B	M12	120	11	60	3	2.45*2*1.45
R12-160B	M12	160	13	60	3	2.45*2*1.45
R12-220B	M12	220	15	50	3.5	2.5*2*1.45
R16-120B	M16	120	15	50	3.8	2.5*2.1*1.45
R16-160B	M16	160	15	50	4	2.5*2.1*1.45
R16-220B	M16	220	15	45	4.8	3.7*1.9*1.7

3. Two axis Scrwe bolt thread rolling machine
This equipment adopts 2-axis thread rolling structure, the design structure is reasonable and firm, equipped with large power, convenient adjustment, high thread processing accuracy, wide application range, can roll various threads, ordinary threads, and can also perform hydraulic processing such as forming, calendering, and rolling on the workpiece.
Main technical parameter:

Model No.	HR28-40	HR28-80	HR28-150
Processing Diameter	6-30mm	4-42mm	4-48mm
Thread pitch	0.5-6mm	0.5-5mm	0.5-5mm
Rolling motor	4KW--4Ploles	4KW--4Ploles	4KW--4Ploles
Hydraulic motor	2.2KW-4Poles	2.2KW-4Poles	2.2KW-4Poles
Rolling pressure	18T	20T	25T
Roller diameter	120-170mm	120-170mm	120-170mm
Rolling speed	1-4m/min	1-4m/min	1-4m/min
Dimension(LxWxH)	1500×1500×1300mm	1500×1500×1300mm	1500×1500×1300mm
Machine weight	1100kg	1250kg	1250kg

4. Screw Bolt heat treatment furnace
Available models
RCW-2600*300*60, 60KW quenching, about 100kg/h for quenching
RCW-3700*300*80, 75KW quenching, 150-170kg/h for quenching
RCW-4700x300x80, 90KW quenching, about 200kg/h for quenching
RCW-4700*400*80, 120KW quenching, 250-300kg/h for quenching
Finished products
Finished Products

Detailed Photos
Detailed Photos
Packaging & Shipping
Packing and Shipping Pictures
After Sales Service
After - sales service
1.All products purchased in our company are guaranteed to keep in good repair for two years. If quality problems happen in guarantee period, our company will maintain for free.
2.Before sending the machine, we will test and adjust, so you can use directly when you get it. Operation video & instruction will be sent to clients, to help them use the machines better.
3. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
4. Any problems occur while using, professional advice will be offered.
5. All kinds of frequently used parts are supplied all the year round.
6. 24 hours on line service.
Certifications
CE Certification
Customer Visiting
Customer visit

Any enquiry are welcome, please feel free to contact us.
Mobile: 0086 13569926370

---
