US$4,000.00-8,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
CS6266B CS6266C
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Controlling Mode
Artificial
Certification
CE, RoHS, ISO 9001
Swing Over Cross Slide
300mm
Transport Package
Plywood Case
Production Capacity
10 PCS/Month
Product Description

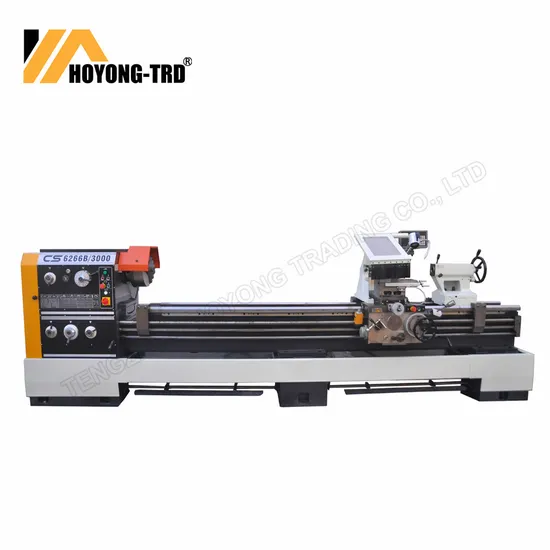

GAP BED LATHE FEATURES:
Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
Threading Inch, Metric, Module and D.P.;
Perform drilling, boring and groove broaching;
Machine all kinds of flat stocks and those in irregular shapes;
Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
There are hand brake and foot brake for users to choose;
These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
FEATURES:
| SPECIFICATIONS | UNIT | CS6140
CS6240
CS6140B
CS6240B | CS6150
CS6250
CS6150B
CS6250B | CS6166
CS6266
CS6166B
CS6266B | CS6150C
CS6250C | CS6166C
CS6266C |
| Capacity | Max. swing dia. over bed | mm | Φ400 | Φ500 | Φ660 | Φ500 | Φ660 |
| Max. swing dia.over cross slide | mm | Φ200 | Φ300 | Φ420 | Φ300 | Φ420 |
| Max. swing dia.in gap | mm | Φ630 | Φ710 | Φ870 | Φ710 | Φ870 |
| Max. workpiece length | mm | 750/1000/1500/2000/3000 |
| Max.turning length | | 700/950/1450/1950/2950 |
| Spindle | Spindle bore diameter | mm | Φ52 Φ82 (B series)Φ105(C series) |
| Taper of spindle bore | | MT6 Φ90 1:20 (B series) Φ113(C series) |
| Type of spindle nose | no | ISO 702/III NO.6 bayonet lock, ISO 702/II NO.8 com-lock type(B&C series) |
| Spindle speed | rpm | 24 steps 9-1600
| 12 steps 36-1600 |
| Spindle motor power | KW | 7.5 |
| Tailstock | Diameter of quill | mm | Φ75 |
| Max. travel of quill | mm | 150 |
| Taper of quill (Morse) | MT | 5 |
| Turret | Tool O.D. size | mm | 25X25 |
| Feed | Max. X travel | mm | 145 |
| Max. Z travel | mm | 320 |
| X feed range | mm/r | 93 kinds 0.012-2.73 | 65 kinds 0.027-1.07 |
| Z feed range | mm/r | 93 kinds 0.028-6.43 | 65 kinds 0.63-2.52 |
| Metric threads | mm | 48 kinds 0.5-224 | 22 kinds 1-14 |
| Inch threads | t.p.i | 48 kinds 72-1/4 | 25 kinds 28-2 |
| Module threads | πmm | 42 kinds 0.5-112 | 18 kinds 0.5-7 |
| Diametric pitch threads | t.p.i.π | 42 kinds 56-1/4 | 24 kinds 56-4 |
| Dimensions | mm | 2382/2632/3132/3632/4632 |
| | 975 |
| | 1230 | 1270 | 1350 | 1270 | 1450 |
| Weight | Kg | 1975/2050/2250/2450/2850 | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 | 2050/2100/2300/2500/2900 | 2150/2200/2400/2600/3000 |
>>
