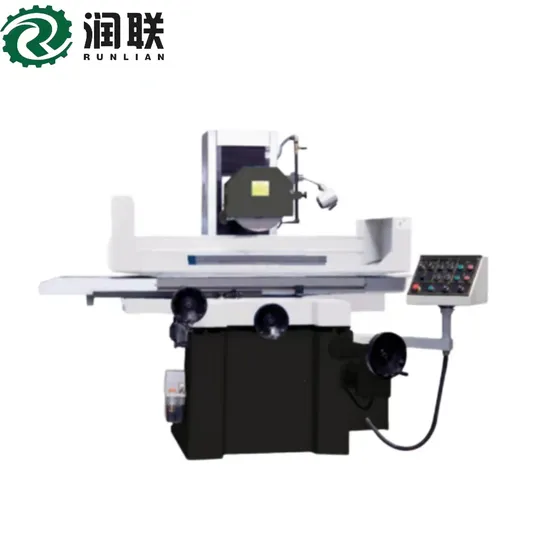

| Description | Unit | SGA-3063AH | SGA-4080AH | |
| SGA-3063AHR | SGA-4080AHR | |||
| SGA-3063AHD | SGA-4080AHD | |||
| Table size (w*L) | mm | 305x635 | 406x813 | |
| Max.longitudinal travel | mm | 765 | 910 | |
| Cross travel | mm | 340 | 450 | |
| Max.distance from spindle center to table | mm | 580 | 580 | |
| Magnetic chuck size | mm | 300x600 | 400x800 | |
| Speed of table longitudinal movement | m/min | 7-23 | 7-23 | |
| Table transverse movement | Auto feed | mm/min | 0.1-8 | 0.1-8 |
| Rapid speed | mm/min | 990 | 990 | |
| Feed of handwheel | mm/div. | 0.02 | 0.02 | |
| Wheelhead vertical movement | Auto feed | mm/stroke | 0.005/.001/0.02/0.03/0.04/0.05(only for AHD model) | |
| Rapid speed | mm/min | 460 (only for AHR/AHD model) | ||
| Feed of handwheel | mm/div. | 0.005 | ||
| Grinding wheel | Speed | rpm | 1450(50hz); 1750(60hz) | 1450(50hz); 1750(60hz) |
| Size (OD*W*ID) | mm | 350x40x127 | 350x40x127 | |
| Spindle Motor | kw | 5.5 | 5.5 | |
| Hydralic motor | kw | 2.2 | 2.2 | |
| Cooling pump motor | kw | 0.125 | 0.125 | |
| Elevating motor | kw | -------(AH mode) 0.25(AHR mode) 0.5 (AHD mode, servo motor) | ||
| Cross feed motor | kw | 0.04 | 0.04 | |
| Max.loading capacity of table (include magnetic chuck) | kg | 270 | 500 | |
| Total rated power | kw | 9 | 9 | |
| Height of machine | mm | 1890 | 1890 | |
| Floor space (L*W) | mm | 2900x2200 | 3600x2400 | |
| Gross weight | kg | 2600 | 3500 | |
| Package dimension (LxWxH) | mm | 2350x2220x2150 | 2850x2270x2180 | |
