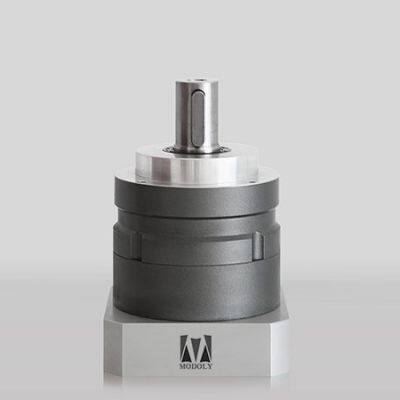

MVE Series MVE 40 planetary reducer gearbox
Product Details
Product Details
Product Description
Product Description
The MVE 40 from HBN's MVE Series is a high-performance, compact mechanical component designed for precision applications requiring high speed and efficiency. Below are its detailed specifications:
Performance ParametersMaximum Torque (Tₐ): 28-80 Nm
Rated Output Torque (Tₙ): 14-20 Nm
Efficiency: 90% (η)
Emergency Braking Torque: 85 Nm
Maximum Input Speed: 8000 min⁻¹
Rated Input Speed: 4000 min⁻¹
Maximum Tilting Moment: Nm (data to be specified)
Maximum Axial Force: 610 N
Maximum Radial Force: 700 N
Moment of Inertia: 2.2-3 kg·cm²
Weight: 1.5 kg (lightweight design)
Lubrication: Lifetime Lubrication
Operating Temperature Range: -15°C to 45°C
Protection Rating: IP65 (dust-tight and protected against water jets)
Operating Noise: ≤63 dB(A)
Paint Color: Gray
Key FeaturesHigh-Speed Capability: Supports speeds up to 8000 min⁻¹ for dynamic applications.
Efficient Power Transmission: 90% efficiency ensures minimal energy loss.
Compact & Lightweight: Weighing just 1.5 kg, ideal for space-constrained installations.
Robust Load Handling: Withstands axial forces up to 610 N and radial forces up to 700 N.
Maintenance-Free: Lifetime lubrication reduces downtime.
Durable Construction: IP65 rating ensures reliability in harsh environments.
Low Noise: Quiet operation (≤63 dB) for improved workplace comfort.
>>
