18-High 6-stand tandem mill Chinese factory

Product Details

Product Description

Product Description

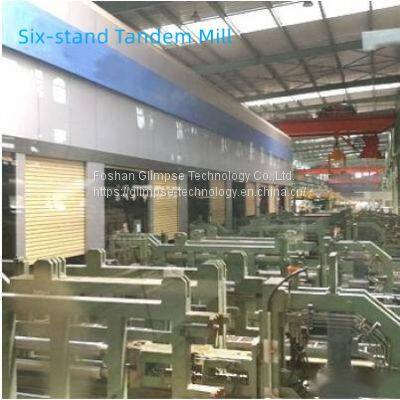

6-stand tandem mill Chinese factory
GLIMPSE 6-stand cold rolling mill unit is designed basing on the mature S-High (18-roll) cold rolling technology, and six stands of 18-high cold rolling mills are arranged in series. This 6-stand cold rolling mill unit is a very competitive stainless steel cold rolling technology in the global domain. This 6-stand cold rolling mill unit is designated for large scale cold rolling stainless steel coils with thickness range 0.3-3.0mm and width range 800-1300mm.
Three big advantages of GLIMPSE S-High 6-stand tandem cold rolling mill:
1) High production capacity. The steel belt passes through multiple rolling machines, rolled at a time, and does not stop in the middle. Compared with the reversible rolling machine, because the rolling machine does not require multiple bands, each rolling does not require deceleration and shutdown, so the production efficiency of the rolling machine is high.
2) High efficiency. This unit is continuously produced. The front and rear steel rolls are welded together. Compared with each rolling head and tail of the reversible rolling machine, the incomplete rate of rolling machine is high.
3) Low energy consumption. Compared with the stand -alone reversible tissue, the rolling machine saved the configuration of multiple large power collection and volumes, which greatly reduced the power consumption, so the power consumption was reduced.
Process flowchart of GLIMPSE S-High 6-stand tandem cold rolling mill:
The parameters of GLIMPSE S-High 6-stand tandem cold rolling mill:
Material: 200 Series, 300 Series, 400 Series hot -rolled stainless steel NO.1 steel rolls or cold -rolled decreasing stainless steel rolls
Steel bandwidth: 800-1300mm
Material thickness: 1.5-6.0mm
Finished product thickness: 0.3-3.0mm
Inner diameter of steel coil: 610mm
Outer diameter of steel coil: 900-2000mm
Weight of steel coil: maximum 28 tons (including sleeve)
Rolling speed: 400m/min
Annual output: 700,000 tons
As a major Chinese factory of rolling mills, Glimpse Technology offer complete sets of tandem mills for rolling flat products of carbon steel, stainless steel and alloy steels.
Keywords: tandem mill, tandem cold mill, continuous rolling mill, tandem cold rolling mill, 6-stand tandem cold rolling mill, stainless steel tandem mill, tandem steel Chinese factory

---
