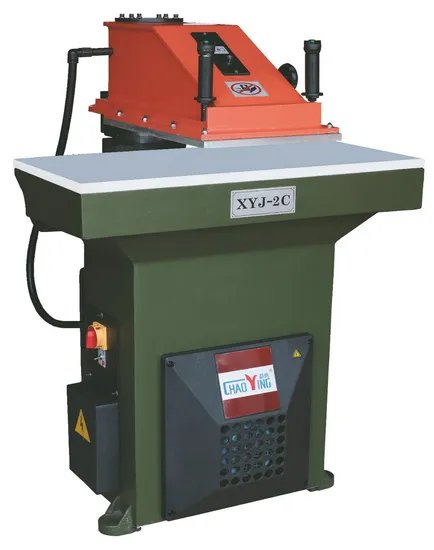

Automatic Swing Arm Cutting Machine for Footwear

Product Description

Use and character
The machine is suitable for cutting single layer or multiple layers of leather, plastic, paperboard, fabric and other materials by forming cutter. It is an ideal cutting device for shoemaking, luggage & baggage, clothing, automobile, artwork, packaging, electronics and other industries.
1. There are two types of cutting modes for selection. The first type is small pressure stepless regulation. The second type is that the cutting adopts intelligent pressure feedback design function without the need of setting cutting point. The height of die cutter has no influence on the cutting and ideal cutting effect can be obtained from each cutting point.
2. Through double oil way static pressure supporting lubricating system, the vertical column makes operators' work more easy, flexible and worry-saving.
3. The main fittings are made of high quality imported assemblies, which have characteristics such as reliable quality, low noise, high efficiency and energy saving.
4. Operating with two hands make sure of workers' safety
Main technical parameters

Maximum	20T
Range of stroke	0-70mm
Distance from upper pressing board to worktable	35-105mm
Size of the upper pressing board	360* 430mm
Size of lower cutting board	900*430mm
Main motor power	1.1kW
Electric Supply Voltage	3x440/400/380/220/200V, 50/60 Hz or as optional
Net weight	650kg
Gross weight	720kgs
Dimension	900*900*1350mm

About our company Jiangsu xiongying Precision Machinery Co., Ltd. Specializes in making hydraulic cutting machine, die cutting machine, cold press machine, high speed slicing machine, multi-blade sawing machine, embossing machine and such other precision machine and general machine. Our company covers an area of 14000m2, as a large enterprise in this industry, we have powerful technical force, complete production equipment, nice environment and convenient transportation condition. Our company is located in Yancheng City Dagang Industry Zone of Jiangsu Province and this town is called as "China Shoe Machinery City", which belongs to National Spark Technology Concentration Area.
After-sales service:
Guarantee is one year, but maintenance is lifelong. Replacement is free and ex-factory. All parts have to be delivered within 12 months (carriage paid). Guarantee excludes every worn or torn parts . Replacement handwork is excluded and it will be done by the buyer. The supplier is not responsible for any rewards for, damages or last earnings met by buyer. Guarantee is not valid if the machine is used the wrong way or it is not serviced as shown in our technical handbook.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer's best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. We have Q/C department to control the quality from raw material to the finished product. When the machine was finished, we will send you the inspection video or photos. Or you can come to our factory to check it by yourself. As well as we have professional experience for packaging, so you can one hundred percent sure about our quality.
Lifelong service:
After the warranty period expires, our company will offer lifelong service to all contract-honoring clients and timely provide clients with spare parts, products and technical service at the most favorable price.
File service:
After the contract is implemented, we will establish files for clients, which include sales contracts, technical parameters, production task forms, commissioning reports and acceptance forms, relevant technical drawings, etc.
Hot sales
Package and delivery
Client visit factory

We can make the machine according to your specifically demand , for example the color, the motor information, the cutting force, the working table size, your brand name logo etc.

---
