Farm Tractor 3 Point Offset Disc Harrow for Sale

Product Description

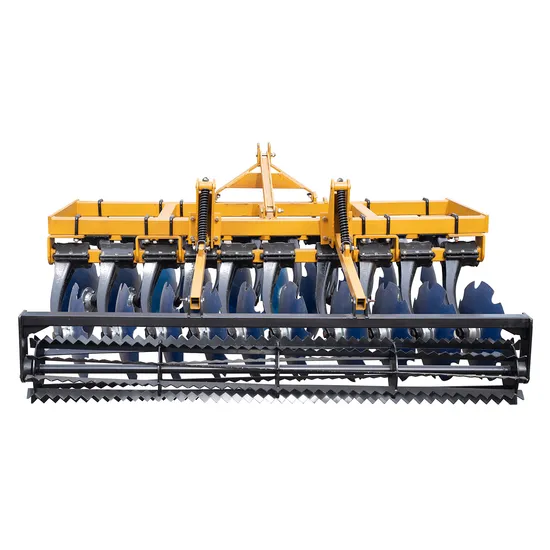

Farm tractor 3 point offset disc harrow for sale
Working width: 1.1-7.0 m
Working depth: 80-140 mm
No. Of disc: 12-80 discs
Matched power: 12-80hp
The 1BQX series Light-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.
The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BQX series suspension Light-duty Disc Harrow's front and rear gangs are all assembled with scalloped disc, could be used with from 12HP to 80HP type tractors.

Model		1BQX- 1.1	1BQX- 1.3	1BQX- 1.5	1BQX- 1.7	1BQX- 1.9		1BQX- 2.3
Name		The 12-blades light-duty harrow	The 14-blades light-duty harrow	The 16-blades light-duty harrow	The 18-blades light-duty harrow	The 20-blades light-duty harrow		The 24-blades light-duty harrow
(mm)Overall dimensions	L	1590	1590	1905	1985	2060		2650
	W	1230	1440	1600	1820	2000		2450
	H	830	830	1118	1118	1118		1280
(m) Max. Working width		1.1	1.3	1.5	1.7	1.9		2.3
(cm) Working depth		10~14
No. Of disc		12	14	16	18		20	24
(mm) Dia of disc		460
(mm) Thickness of disc		3
Weight(kg)		200	220	240	260		300	500
(ha/h) Productivity		0.7	0.84	0.97	1.1		1.25	1.5
Linkage		three-point mounted
(mm) Trans. Clearance		≥ 280	≥ 280	≥ 200	≥ 200		≥ 200	≥ 200
(HP) Matched power		12~18	15~24	22~28	30~40		35~45	50~60

---
