US$15,800.00-16,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Max. Power Consumption
2.0kw
Max. Working Speed
25000mm/Min
Spindle Power
9.0kw Air Cooling
Drive Motors
Syntec 1000W AC Servo Motor
Control System
Syntec 60we Bus Control System
Atc
8PC Linear Tool Magazine
Transport Package
Wooden Package
Specification
13 cubic meter package
Production Capacity
1000set/Year
Packaging & Delivery
Package Size
3600.00cm * 2280.00cm * 2000.00cm
Package Gross Weight
1600.000kg
Product Description

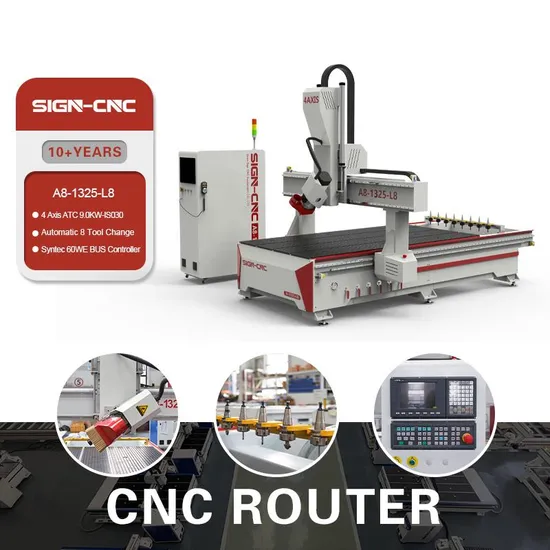

1325 4 axis Atc CNC Router Machine for Furniture Making Work High Quality Supply with good price
Specificatio
Model
| A8-1325-L8
|
X, Y Working size
| 1300x2500
|
Z feed Height
| 300mm
|
Table Surface
| Vacuum table
|
X, Y Structure
| Rack and Pinion Drive, TBI Linear Square Guide Rail
|
Z Structure
| 25mm Linear Square Guide Rail and Ball Screw
|
Max. Power Consumption
| (Without spindle) 2.0Kw
|
Max. Rapid Travel Rate
| 33000mm/min
|
Max. Working Speed
| 25000mm/min
|
Spindle Power
| 9.0KW ATC spindle
|
Spindle Speed
| 0-24000RPM
|
Drive Motors
| Syntec 1000W AC servo motor and driver
|
Working Voltage:
| 220/380V/50/60Hz
|
Command Language
| G code
|
Control System
| Syntec 60WE bus control system
|
X,Y,Z repositioning Accuracy
| ±0.01mm
|
X,Y Resolution
| <0.01mm
|
Software
| Artcam
|
Running Temperature
| 0 degree - 45 degree
|
Relative Humidity
| 30% - 75%
|
Optional Parts
| 4 AXIS
|
Jinan Sign CNC Equipment Co., Ltd.
FAQ
1. How can I run it ? Send you the operation video and English instruction for use. We provide free technical support 2. What else I need except the machine? computer for design drawing ,ATC machine use air compressor 3.What is the warranty? 2 years. 4. What is your payment? T/T 30% deposit ,70% before shipping. L/C at sight ,Secure payment.
>>
