Xj65 Hot Sale Rubber Extruder Machine for Rubber Making

Product Description

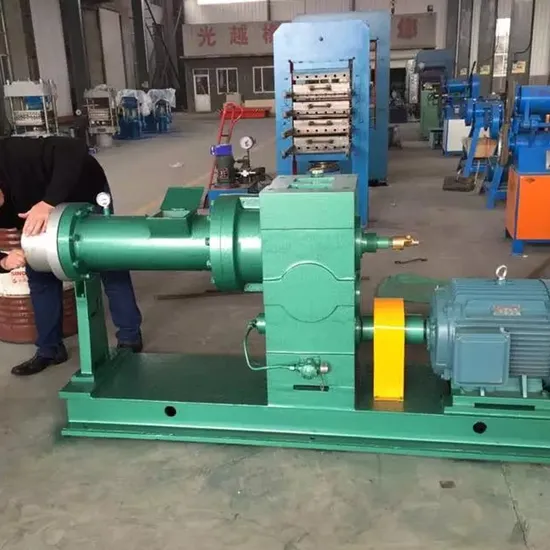

Rubber extruder
Type:
Hot feed rubber extruder, cold feed rubber extruder, Pin barrel cold feed rubber extruder, exhaust cold feed rubber extruder, rubber strainer extruder. Lab extruder
Model:
Hot feed rubber extruder: XJ-30, XJ-65, XJ-85, XJ-115, XJ-150
Normal cold feed rubber extruder: Xjw-65, xjw-85, xjw-115
Pin barrel cold feed rubber extruder: Xjd-50, xjd-65, xjd-75, xjd-90, xjd-120
Exhaust cold feed rubber extruder: Xjd-90
We can also design for your need
Extruder head and die:
This can be designed according to your need
Features
1. Screw is made of best 38CrMoALA, its hardness is higher generally than HRC62 ( 60-65 ), Depth of nitrogen is higher than 0.55-0.7 mm ( 0.4-0.7 )
2. Bush is also made of 38CrMoALA, its hardness is generally higher than HRC66( 65-70 ), Depth of nitrogen is generally higher than 0.55-0.7 mm ( 0.4-0.7 mm )
3.Feeding device is made of feeding roller and feeding barrel, Feeding roller is driven by gears and its structure resembles Italy type. The rubber will never leak out, then it is never impossible for that the rubber enters into the bearing bush.
Mobile phone: 0086 15966802787

mode item	XJ-6	XJ-85	XJ-115	XJ-150	XJ-200
screw dia(mm)	65	85	115	150	200
L/D ratio	4	4.8	4.8	4.4	4.4
screw speed(r/min)	20, 27, 35, 47	28, 40, 52, 72	20-60	27-81	3-64
motor power(kw)	7.5	15	30	55	90
capacity(kg/h)	50-80	62-270	100-420	800	1500-2200
overall dimensions(L*W*H)(mm)	1594*604*1053	2065*760*1154	2770*655*1350	3411*814*1470	4549*1140*1750
about weight(T)	~1.2	~2.6	~4.0	~4.8	~5

---
