Product Introduction

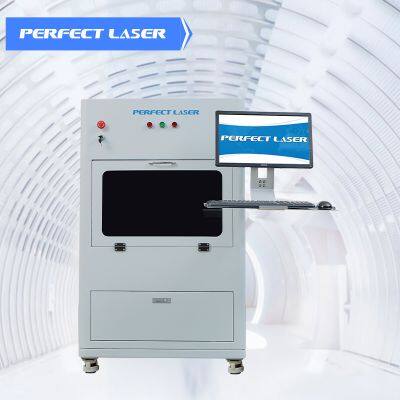

Perfect Laser's new 3D laser photo crystal engraving machine adopts imported air-cooled laser system,it is stable for engraving 3d crystal and easy to maintain.
The laser photo crystal engraving machine is equipped with a built-in industrial computer (including monitor & keyboard), the 3d engraving software is installed well also, so user can use it directly when receiving it, no extra installation.
And the core components of the 3D laser engraving machine price uses imported materials with better quality and longer service life.
Product Features
1. Fast engraving speed: the 3D laser photo crystal engraving machine uses 3d inner engraving technology to produce images inside of crystal, the engraving speed is up to 300,000 points/minute.
2. Big engraving range: the engraving area of the laser photo crystal engraving machine can reach 450mm×450mm×160mm, which can meet the needs of mass production.
3. Highly integrated: the 3D laser engraving machine price is equipped with an industrial computer. There is also a foldable bracket for placing the monitor and keyboard. It is very convenient to move with universal wheels.
4. Imported components: the 3D laser engraver price adopts US imported observe windows which can protect us from injured, and Taiwan imported famous brand guide rail and screw for better quality.
5. The 2D to 3D image software of the 3D laser engraver price is standard and supports multiple image formats.
6. An optional 3D camera can be used to directly generate 3D images for on-site engraving after taking pictures, which is especially suitable for personalized gift customization in large shopping malls, resorts and other places.
Application
Applicable Materials: The 3D laser photo crystal engraving machine is widely used in crystal, glass and many transparent materials.
Applicable Industries: The 3D laser photo crystal engraving machine is widely used in tourism, hotels, photo studios, galleries, advertising, gift customization, toys and other industries.
Technical Data
Product Name
| 3D Laser Photo Crystal Engraving Machine
|
Model
| PE-DP-A1
|
Laser
| ND: YAG Diode Pumped
|
Average Life LD
| >20000 Hours
|
Max. Frequency
| 5000HZ
|
Laser Power
| 3W
| 5W
|
Max Range
Support Split
| 450 x 450 x 150mm
| 450 x 450 x 200mm
|
Focal Length
| 120mm
| 150mm
|
Max. Range
Quick Non-split
| 90mm x 90mm
| 130mm x 130mm
|
Spot Size
| 30μm
| 40μm
|
Speed
| 300000 points / min
|
Repeat Offsite
| 10~20μm
|
Power
| <350W 220v/50Hz (110v/60Hz)
|
Net Weight
| 240 kgs
|
Cooling
| Air cooling
|
File Format
| BMP / JPG / DXF / OBJ / WRL /
3DS / STL / LSS / LAX / CAD
|
Package size
| 1060mm x1060mm x1460mm
|
Machine Size
| 800mm x 950mm x 1330mm
|
Warranty
| 2 years for Laser Source,
1 year for the whole 3D Laser Photo CrystalEngraving Machine
|
>>
