Ensuring Safe and Efficient Use of Construction Lifts 1t and 2t

Product Description

Product Description
Part1. Introduction:

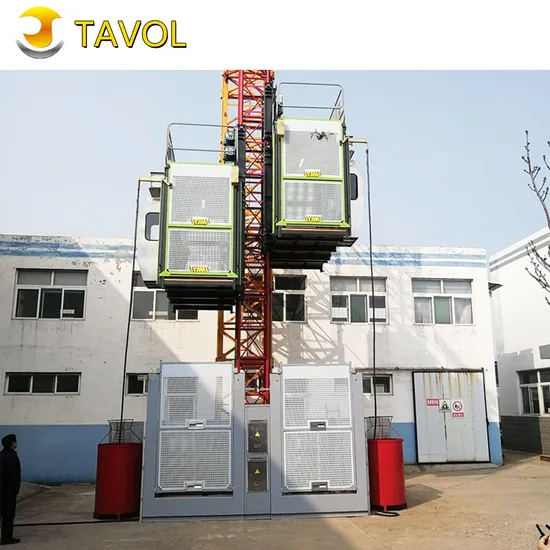

Adopting advanced technology both at home and abroad, SC series construction elevator is novel in design, reasonable in structure, simple in operation, convenient in assembly and disassembly, safe an reliable in working. The unit incorporates famous brand electric components and main parts in transmission mechanism. The steel structure is made of high-quality steel materials and welded with CO2 gas shield welding. Surface paint is made with imported raw materials in brilliant, long lasting colors.
The unit is provided with reliable safety interlock devices, safety switch, breakage protection switch, upper and lower limits and limit switches, etc. Progressive dropping safety device and safety protection hook are provided. The safety design and configuration fully comply to national standards.

Part2.Specification for Construction Hoist:

Item		SC200/200	SC100/100
Basic parameters	Free standing height(m)	50	24
	Max. Lifting height (m)	150	60
	Rated load(Kg)	2×2000	2×1000
	Motor power(Kw)	(2×3) ×11	2×15
	Lifting speed(m/min)	0-40	0-40
	Main cable	3×20mm2+2(National standard)	3×6mm2+2(National standard)
Standard section	Mast size(m)	650×650×1508	650×650×1508
	Main limb material(steel tube)	φ76×4.5/Q345B	φ76×4/2 Q345B
Cage	Cage inner dimensions(m)	3.2×1.5×2.2	3.2×1.5×2.2

Part3. Advantages for Construction Hoist:
1.High quality of motor, low noise
2.Strong load ability, low voltage start
3.Reasonable optimization design, compact structure, convenient installation and debugging
4.Running the lift elevator before the delivery
5.Driving mechanism refueling debugging, customer without refueling
6.Selects the high quality gear reducer and anti dropping device
Part4. Detail Picture for Construction Hoist:

Packaging & Shipping
Part5. Package & Delivery:
Package: naked by 40HC container.
Delivery time: 30 days after advance payment.
After Sales Service
Part6.Service:
1- One year warranty for whole machines.
2- Providing free quick-wear part.
3- Low charge for continue maintenance when warranty is expired.
4- Exclusive engineer support at any time.
5- free training to end-users.
6- 24 hours online service and support

Company Profile
Part7. Company View:
TAVOL CRANES has been in the field of crane and hoist for more than 10 years, so we are experienced and professional in manufacturing and exporting all kinds of cranes (including Tower Crane, Construction Hoist,Overhead Crane, Gantry Crane, Jib Crane), wire rope electric hoist, electric chain hoist, hook block and crane other spare parts.
TAVOL brand crane has been exported to many countries like Bangladesh, Vietnam, Autralia, Ethiopia, Thailand, Singapore, Malaysia, Phillipines, Iceland, Brazil and Kazakhstan and so on. It is a great thing to see lots of TAVOL CRANES are insatlled in different countries.
Also many of customers from different countries come to visit us to establish a long-term business relationship with us.They said because of our crane, their heavy work becomes easy.
They gave much advice to us and we learned a lot from them and then we are growing up together. Now we are not only business partners, but also close friends.
Welcome to visit us at your convenient time!
Let's start our business from your clicking.
Part8. Customer Visit:

FAQ
Part9. FAQ:
If you want to inquiry about our construction building hoist, please inform us the details as below:
-Lift height? (M)
-Load capacity(Kg)
-Cage number: single or double?
-Local voltage(V)
-Other special requirement
Contact with us directly!
