High Precision Low Price CNC Machine Center CNC Machine Tools for Vmc 855 Vmc 850 with CE Certification

Product Description

Company Profile

Jiangsu Chenghai Intelligent Equipment Co.,Ltd.is located in intelligent equipment Industrial Park, Fengxian Economic Development Zone,Xuzhou City,Jiangsu Province.Is a set design,manufacturing, sales,service as one of the CNC machine tool manufacturing company.The company has a 15,000 square meter standardized workshop ,phase ll and phase lll intelligent industrial park is also under construction,the company has passed the ISO9001 quality management system certification.The main business scope is intelligent equipment manufacturing;Research and development of intelligent robots; CNC machine tool manufacturing;Technical services and other projects.The company has perfect advanced testing equipment,assembly will be more than 48 hours uninterrupted actual operation inspection and record.The main products of the company have entered the core manufacturingfields of key industries such as automobile manufacturing, national defense,aerospace,rail transit,hardware and molds.
Detailed Photos

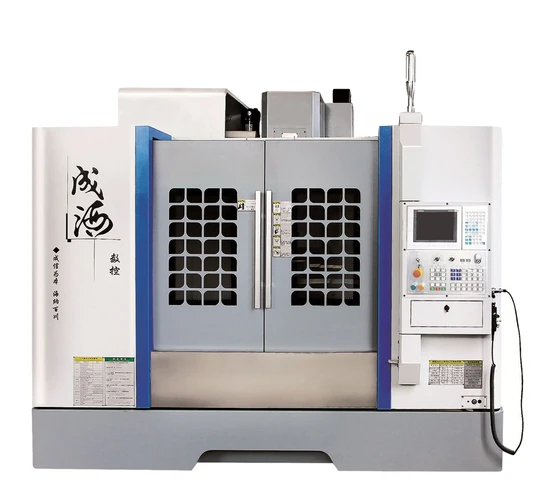

General Vertical Machining Center
Universal vertical machining center, mainly used for processing medium-sized parts and molds. After one clamping, the workpiece can be continuously processed through various processes such as milling, drilling, boring, and hinge. It can be used on a single machine or on multiple assembly lines to process parts. Featuring strong cutting, high-speed positioning, mechatronics integration, automatic chip removal, safety protection, and convenient operation.

Processing Precision	0.005-0.008mm
Maximun Load of table	600kg
Travel for X/Y/Z axes	800*550*600mm
Worktable(length×width)	1000*550mm
Spindle Speed	8000r/Min
Weights	5800KG
Specification	2750*2300*2600mm
Origin	China

Performance Classification	Mid-Range CNC Machine Tools
Condition	New
Spindle Motor Power	7.5kw
Maximum Stroke	120-670mm
Maximun cutting feed speed	1-10000mm
Requirements for air campressin	≥6kg/cm
CNC System	KND 2000

Specification

Machine Type	Unit	VMC855
Worktable
Worktable(lengthxwidth)	mm	1000*550
Maximun Load of table	kg	600
T-slot(number of slotxslot widthxpitch)	mm	5-18-90
Triaxial itinerary
Travel for X/Y/Z axes	mm	800*550*550
Distance from spindle nose to table surface	mm	120-670
Distance from spindle center to column guide surface	mm	550
Feed system
CNC System		KND2000
Rapid shift of axes of x/y/z	m/min	36/36/24
Maximun cutting feed speed	mm/min	1-10000
Automatic tool changing system(CNC milling without)
Standard tool quantity	hold	24
Tool max.dia./Length	mm	φ78/300
Tool exchange mode		air-operated
Average tool exchange time	sec	Cloak's Knives Storeroom7s/Circular Tool Magazine2.5s
Precision
Positioning accuracy	mm	0.008
Accuracy of repeated positioning	mm	0.005
Spindle system
Spindle speed	r.p.m	8000
Spindle specifications(mode/installation diameter)		BT40/ø150
Drive mode of spindle		Belt drive
Motor power of spindle	kW	7.5
Air pressure
Requirements for air compressing	kg/cm	≥6
Air pressure fiux	m³/min	≥0.3
Machine specifications
Integarated weight	kg	5800
Overall dimension(length x width x height)	mm	2750*2300*2600

Strict Quality Control
Natural Aging Treatment of Casting
Spindle vibration detection Ballarroundness accuracy testing


1.Workpiece display
Spindle dynamic balance detection Laser interferometer detection
The VMC machine can complete miling,boring, drilling,tappingand cutting threads and other processes.
2.Testing process/Multi-layer testing before delivery
Ball bar roundness accuracy testing Machine cutting testing
The importance of testing includes not only the machine performanc butalsothe strength of the manufacturer and the responsibility to the customer.
Certifications
Exhibition photos
CONFIGURATION

KND controller system	Water Tank cooling device
Automatic lubricating device	Outer protective cover
Spindle taper hole air blowing device	Handheld air gun
Electric cabinet heat exchanger	Working light
Three color warning light	RS-232 Standard output interface
Tools & tool box	Operation Manual

OPTIONAL CONFIGURATION

Automatic tool changer (Armless type or Arm type)

Spindle oil cooling device

High speed spindle

Spindle center water outlet unit

Chain chip conveyor/Spiral chip conveyor

Disc type oil water separator

Electric cabinet air conditioning

FAQ

FAQ
Q1A1	How can I choose the most suitable machines ?If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you.If you are the trading company, you can tell us your customer's request or we will suggest you our best selling model for you.
Q2A2	Where is our factory located? How can I visit there?Our factory is located in XuZhou City, JiangSu Province, China. You are warmly welcomed to visit us. We can send the invitation letter to you and pick up you from Nanjing Airport to our factory.
Q3A3	How is the warranty?We will supply standard ports and accessories with our machine when shipment.Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories,we will replace them by air or express immediately free of charge.
Q4A4	Do you have a stock?Our Chinese market order is very good, we have many machines produce everyday and delivery everyday.Our fastest delivery time for 1~5 sets will be within one month.
Q5A5	How about your quality?We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system.Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL.90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation.So you can rest assured of our quality products and our best services.
Q6A6	Do you have professional engineers?Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality.
Q7A7	What is the package?Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation.
Q8A8	What's your main products of your company?We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool .
Q9A9	What's the MOQ?One set. The big discount will start from three sets.
Q10A10	What's the Payment Terms ?T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation.
Q11A11	What is the charge of installing and commissioning?Most of machines you can install well according to our drawing.For some machines, it need our technician to go to your local site and help you install and commission machines.At the same time, our technician will train your workers, it will table about 7~15days for different machines.The return air-tickets, accommodation, food, salary (USD100.00/day for each technician), etc will be born by the end-user.

---
