Wholesale Price PTFE Flat Sheet Temperature Resistance Plastic PTFE Molded Sheet

Product Description

Product Description
PTFE sheet by suspension polymerization of PTFE resin molding. It has the best chemical resistance in known plastics and does not age. It has the best coefficient of friction in known solid materials and can be used at -180 ° C to +260 ° C without load.
Sepcifications

PTFE Molded Sheet,Skived Sheet/Tape
Type	Thickness(mm)	Width(mm)	Length(mm)
PTFE Molded Sheet	4~ 600	150 ~ 2000	Max 2000
PTFE Skived Sheet	0.3 ~ 6.5	300 ~ 2700	≥ 200
PTFE Molded Tape	0.5 ~ 4.0	100 ~ 500	≥ 1000
PTFE Skived Film
High-Density	0.015,0.030,0.020,0.035,0.025,0.04	30 - 90	≥ 500
Semi-Density	0.03,0.035,0.05-0.1	60 - 90	≥ 1000
Common	0.02,0.025,0.03,0.035,0.04-0.1,0.05,0.15,0.08,0.2,0.1,0.3	60-90 100 - 1000	≥ 500

Main Properties (sheet 1)

Properties	Unit	Result
Apparent Density	g/cm3	2.10 ~ 2.30
Tensile Strength(min)	Mpa	15.0
Elongation At Break(min)	%	150
Dielectric Strength(min)	KV/mm	10

(sheet 2)

Property	Unit	High- Density	Semi - Density	Common
Tensile Strength ≥ 0.01	Mpa	≥ 30	≥ 30	≥ 10
Elongation At Break ≥ 0.01	%	≥ 30	≥ 60	≥ 100
1MHZ Dielectric Loss Tangent ≥ 0.01		2.5 × 10 -4	-	-
1MHZ Dielectric Constant		1.8 - 2.2	-	-
Dc Breakdown Voltage (normal tep)	KV/M	200 40	60 40	30

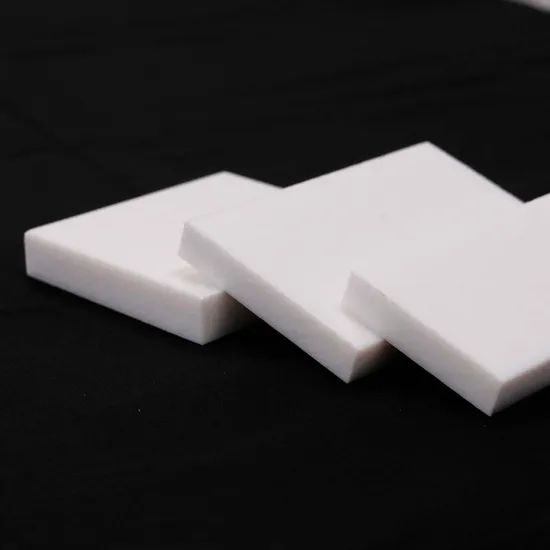

Detailed Photos
Quality control is a necessary step FOR EACH ORDER
Production Process for PTFE Rod As Following Steps :
Packaging & Shipping
Appilication
PTFE sheets are often used in applications where a combination of these properties is required, such as in gaskets, seals, electrical insulation, and lining materials. PTFE sheet has a high melting temperature, outstanding chemical resistance, and self-lubrication properties. We offers a variety of PTFE products to fit your needs.
Company Profile
Zhenjiang Hansa Sealant Co., Ltd. is a manufacturing facility that specializes in producing various plastic components. The factory equipped with advanced machinery and technology to efficiently produce high-quality plastic parts. In addition to manufacturing plastic parts, we offer additional services such as assembly, finishing, or customization of the parts. This can include adding logos, labels, or any other branding elements requested by the customer.
FAQ
Q1.What is your terms of packing
Answer: Generally, we use carbon boxes with wooden boxes outside ,to ensure our products has been safely delivered
Q2.What is your term of delivery
Answer: FCQ DDP, if the usually take 7-10 days
If the total weight of the goods is up to ten tons, the required transport time is approximately 7-10 days
Q3:How about customized service
The demand for product customization is Available
Our customized service can provide unique and personalized plastic parts

---
