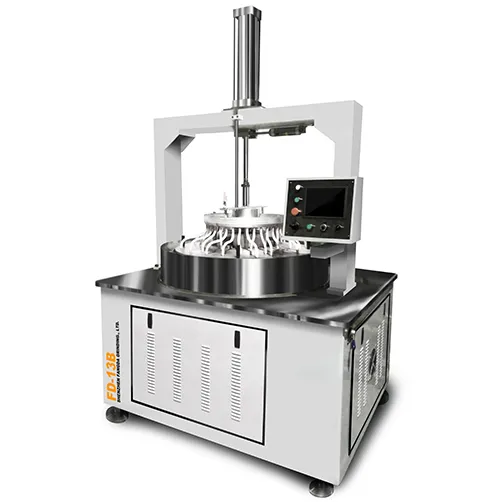

Fonda Metal Hard Brittle Material Polishing and Grinding Equipment Double-Sided Grinding Machine

Product Description

Why Ponda?
Ponda has profound experience of lapping, polishing and thinning. We heretofore supplied more than 60, 000 lapping process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; the substances of metal, wafer substrate, ceramics, glass, industrial sapphire, plastics, and any other composites.
Main uses:
The equipment is mainly used for precision grinding of sapphire substrate, tungsten steel blade, ceramic blade and other hard and brittle materials.
Products Show
High precision grinding machine features:
1. The upper and lower grinding disks of this series of grinding machines can be repaired automatically.
2. Using four motors to run synchronously [Microsoft user 1], the speed change range is wider, the motion accuracy is higher, the response speed is faster, can adapt to the requirements of different grinding materials and grinding process, soft start, soft stop, speed stability, small impact.
3. The shaving machine is driven by servomotor, which can ensure the sliding of the hydraulic suspended guide rail is more stable and the plane dressing effect is better.
4. DSP, web-link, color terminal and other advanced technologies are adopted in the control system. The response speed of the system is faster and more accurate, and it has remote monitoring and remote maintenance functions.
5, the use of advanced Siemens PLC program controller, control the action of the machine, high degree of automation, and matched by Siemens Smart 700 large screen touch screen interface, display the current state of the machine, man-machine dialogue, operation at a glance.
6, the use of frequency control and full gear drive, so that the whole machine work when starting stable, stable operation, especially at low speed, to overcome the upper and lower grinding disk movement, crawling phenomenon.
7. The pneumatic actuator produced by Yadeke and the pneumatic control component produced by SMC are used to realize the stepless pressure regulation of the grinding disc in four stages, namely light pressure, medium pressure, heavy pressure and fine, so as to provide better grinding efficiency and wider selection of grinding process for the grinding workpiece.
8, the big gear ring can be lifted, and the lifting position can be adjusted. The height of the sun wheel can also be adjusted by periodically increasing or decreasing the number of shims.
9, This equipment can set and store 30 sets of different process parameters (pressure, speed, time, turn number) for users to choose.
10, equipped with the main cylinder end lock mechanism, can be convenient and safe to lock the upper grinding disc.
APPLICATION

Process	Industry by Substance	Industry by Applicability
Double Plate Lapping & Polishing	Metal And Alloy Ceramic Oxide Carbide Glass Plastic Nature Stone	Sealing	valve and sealing ring(liquid, oil, gas)
		Semiconductor	LED substrate(Al2O3, Si, SiC) wafer substrate(Si, SiC, Ge, Ge-Si, GaN, GaAs, GaAsAl, GaAsP, InSb, ZnO, AlN)
		Plastic	PE, E/VAC, SBS, SBR, NBR, SR, BR, PR
		Optics(flat)	optical lens, optical reflector, scintillator cube, holographic glass, HUD glass, screen glass
		Gemstone	jade, sapphire, agate, etc.
		Others	graphite block, gauge block, micrometer gauge, diamond, friction plate, knife, bearing, metal components, and any other precise hardware.
*NOTE: lapping can only remove slight thickness of workpiece. If need ultra thinning(≤100μm), thinner machine are needed.

SPECIFICATION

Standard Specification
Machine Model	Φ965xΦ385x45		Gear ring lifting height		35mm
Main motor	Y132M-4 7.5KW		Planetary wheel specification		DP12Z = 152α =20°
Lower grinding disc speed	0-50RPM		Auxiliary motor		Y90L-4 1.5KW
Number of planet wheels placed n	3≤N≤6		Master cylinder		Φ125x450 mm
Sand pump motor	AB-100 250W		Product grinding parallelism		0.002 mm
Number of planetary wheels	6		Disk repair machine		200W
Grinding workpiece thickness b	0.2 mm or less b 20 mm or less		Lifting cylinder		Φ80x250 mm
Equipment dimensions	1700x1350x2650 (L x W x H)		Grinding workpiece ideal specification		Φ 200 mm
End lock cylinder	32x15 mm		Equipment quality		3000kg
Built-In Optional Kits
Grade		Standard		Advanced
Slurry Supply System		-		Integrated with PLC
Facing and Grooving System		-		Integrated with PLC
Machine Enclosure		-		Framed by Metal Plate
*NOTE: the optional kits based on the production requirements, making samples can confirm if they are necessary.

SAMPLE DEMONSTRATION (DOUBLE PLATE)
About the Company
Factory front desk
Ponda is a high-tech enterprise specializing in all kinds of high precision grinding equipment, polishing equipment and its
supporting products and consumable materials
Production and assembly shop We have a production workshop and testing equipment, assembly workers and mechanical design engineers
45 people
patent
Delivery & Packing
Packing Details : Packing, 1 pcs/carton.
FAQs
Q1: Which machine is most applicable for my product?
A: It usually depends on 5 requirements and parameters of your product: flatness, roughness, thickness, dimension, productivity:
1. If better flatness and roughness were required, you might need both lapping and polishing machine.
2. If to thin the product in a big margin, such as 500μm, you might need a thinner machine for extra.
3. If the productivity were excessive, you might need larger machine or to expand production line.
Additionally, we can confirm the production line as we make samples for you.
Q2: Does Ponda charge for making samples?
A: No, it's free to make samples.
Q3: Is Ponda trader or manufacturer?
A: We are manufacturer, certified National High-Tech Enterprise.
Q4: How long does it take machine to deliver?
A: Approximately 15 days to deliver. If the machine are out of stock, we need 15 days more to manufacture.
Q5: Does Ponda provide oversea setup and after-sale service?
A: Yes, we provide oversea service and online tutorial.
Q6: How many type of machine does Ponda manufacture?
A: We have 21 major series of machines, 5 different types run in different principles, more than 15 types of plates, 100 types of slurries.

---
