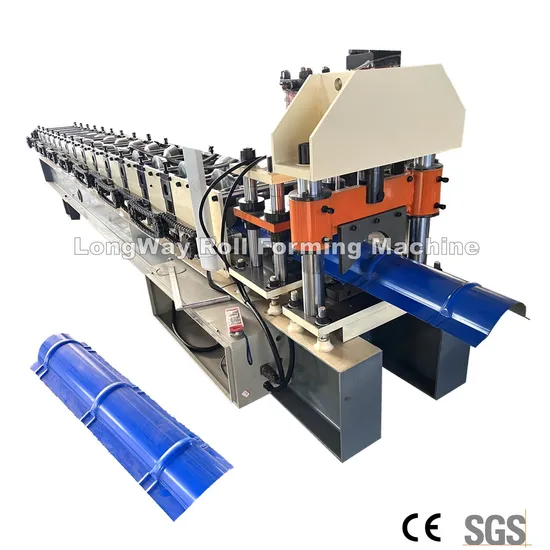

CE Certificate Building Materials Steel Metal 333 Roof Sheet Ridge Cap Tile Roll Forming Machine with PLC

Product Description

Product Description
The Metal 333 Roof Sheet Ridge Cap Tile Roll Forming Machine is a highly advanced and efficient solution for producing high-quality glazed steel roofing tiles. Here are its key selling points:
High-Quality Output: Designed to produce durable and aesthetically pleasing glazed steel roofing tiles, which are widely popular in European markets for their weather resistance and longevity.
Versatility: Capable of processing various materials, including galvanized steel, aluminum, and color-coated coils, allowing for customization to meet diverse customer needs.
Advanced Automation: Equipped with PLC and HMI systems, ensuring precise control, easy operation, and minimal manual intervention.
Energy Efficiency: Designed to minimize energy consumption, reducing operational costs and environmental impact.
Detailed Photos
Product Parameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1000/1200/1220mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		12 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)
Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		9.8m×1.5m×1.2m
Total weight (Approx)		8.6T

Installation Instructions
Applications of Metal 333 Roof Sheet Ridge Cap Tile Roll Forming Machine
This series of the profile is designed to be economical roofing panels for residential, industrial, and commercial projects.
A minimum of 0.30mm and a maximum of 0.7mm gives more resilience to damage.
Packaging & Shipping
Anti-Corrosion Protection: Spraying anti-corrosive oil on rollers to prevent oxidation during shipping, ensuring long-lasting performance.
Oxidation Prevention: Wrapping the entire machine with isolation film to safeguard against oxidation during transit.
Cost-Effective Shipping: Optimized space planning to minimize transportation costs for customers.
Secure Transit: Properly fixed and secured to prevent any damage during transportation, ensuring the machine arrives in perfect condition.
Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping

---
