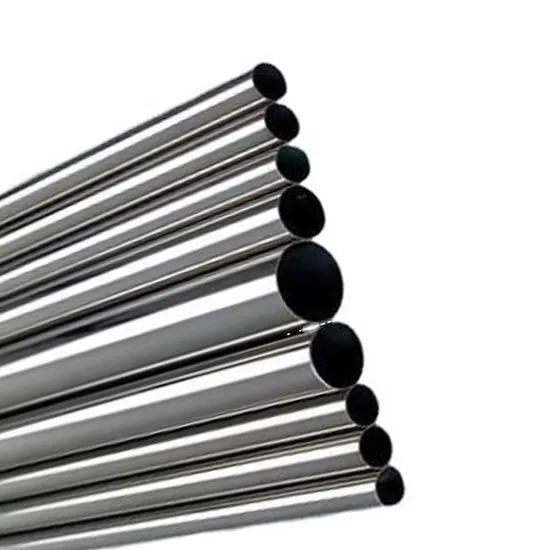

Lork ISO AMS 5559/Uns S32100 Steel Welded Tube for Aerospace 321 Stainless Steel Welded Pipe

Product Description

Product Description

Introduction LORK is a special stainless steel manufacturer with 20 years of manufacturing experience.

321 (UNS S32100) is a titanium stabilized austenitic stainless steel with good general corrosion resistance. It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 800 - 1500°F (427 - 816°C). The alloy resists oxidation to 1500°F (816°C) and has higher creep and stress rupture properties than alloys 304 and 304L. It also possesses good low temperature toughness.
321H (UNS S 32109) is the higher carbon (0.04 - 0.10) version of the alloy. It was developed for enhanced creep resistance and for higher strength at temperatures above 1000oF (537°C). In most instances, the carbon content of the plate enables dual certification.

321 cannot be hardened by heat treatment, only by cold working. It can be easily welded and processed by standard shop fabrication practices.

321 stainless steel plate is also advantageous for high temperature service because of its good mechanical properties. 321 stainless steel plate offers higher creep and stress rupture properties than 304 and, particularly, 304L, which might also be considered for exposures where sensitization and intergranular corrosion are concerns.

Stainless Steel 321 Applications
▪ Aerospace - piston engine manifolds▪ Chemical Processing▪ Expansion Joints▪ Food Processing - equipment and storage▪ Petroleum Refining - polythionic acid service▪ Waste Treatment - thermal oxidizers
Stainless Steel 321 Chemical Composition Weight % (all values are maximum unless a range is otherwise indicated)

Element	321
Cr	17-19
Ni	9-12
C	0.08 max
Mn	2.0 max
P	0.045 max
S	0.03 max
Si	0.75 max
Ti	5*(C+N)-0.7
Fe	Balance

Stainless Steel 321 Mechanical Properties
Mechanical property requirements for annealed product as specified in ASTM A240 and ASME SA240

Yield Strength		Ultimate Tensile Strength		Elongation	Hardness
Psi(min)	MPa	Psi(min)	MPa	% (min)	(max)
30,000	205	75,000	515	40	217 (HB)

Available Sizes And Specification

321/321H stainless steel coil sizes and specifications
Grade	321/321H
Cold rolled stainless steel coil	Thickness: 0.3mm- 3.0mm, Width: 1000mm - 2000mm,Surface: 2B/BA/SB/8K/HL/1D/2D etc
Hot rolled stainless steel coil	Thickness: 3.0mm - 16mm, Width: 1000mm - 2000mmSurface: No.1/pickling
Standard	ASTM A240/A480, ASTM B688, ASTM B463/SB463, ASTM B168/SB168, ASTM B443/SB443/B424/SB424B625/SB625 B575/SB575, JIS G4303, BS 1449, DN17441, G4305

Surface Treatment

Detection
Processing
Packaging & Shipping
Company Profile
FAQ
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .
Q2: Can I have free sample before making orders?
A2: Yes,we can supply free sample as requirement,but buyer needs to pay the freight charges ,the freight fee will return to buyer after making order.
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .

---
