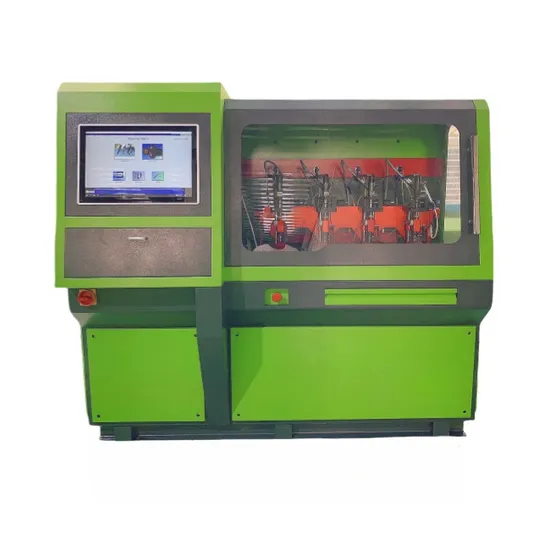

Jz-326b PRO Diesel High Pressure Common Rail 4-6 Injectors at The Same Time Test Bench

Product Description

Product Introduction
JZ-326B PRO common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4,Euro-5,Euro-6 injectors.
It can test thousands of injectors. The experimental data are complete.
Standard Functions:

Test common rail injector
Test piezoelectric injector
Test 4-pin,6-pin,Heavy Engine injector
Test the oil injection and return of 4 injectors simultaneously and generate the code at the same time
Remote software upgrade,data update
Coding Function:

Generate 7/8/9//10 digital IQA code
Generate piezo IMA ISA code
Generate 16/22/24/26/30/32 digital code
Generate C2i,C3i,C4i code
Generate IIC code
Generate XPI code
Hardware Configuration:

8 flow meters
CP4 common rail pump
4 sets of pneumatic fixture,compatible with internal/external injectors
19 Inch industrial computer,touch screen and keyboard dual mode operation
Technical Parameters

Technical Parameters
Model Number				JZ-326B PRO
Color				Green
Frequency				50Hz / 60Hz
Speed				0~2000 RPM
Speed Control Mode				Frequency Converter
Main Output				7.5 KW
Oil Tank Cooling Output				105 Watts
Power				380V AC 3-Phase-4-Wire
Heating/Cooling				Air Conditioning (2P)
Diesel Tank Volume				40L Filtration :3μm
Fuel Temperature				40ºC ± 2ºC
Nozzel Flow Sensor				Gear Flow Sensor
Flow Metering Unit				0.008~2L /min
Control Return Voltage				DC 12V DC 24V
ECU Internal Boost				0-200 VDC(max)
Max CR Pressure				2700 Bar
Rail Pressure Accuracy				±5 Bar
Injection Frequency				400-6000 n/M
Pulse Width				100-3000 μs
Noise level				<85dB
Machine Dimension				1640*1300*1550MM
Packing Dimension				1730*1250*1720MM
Net Weight				750KG
Gross Weight				837KG
