3015 1530 Metal CNC Fiber Laser Cutting Machine 1000W 2000W 4000W 6000W Pipe Tube Laser Cutter Machine Price for Steel Sheet

Product Description

Feature

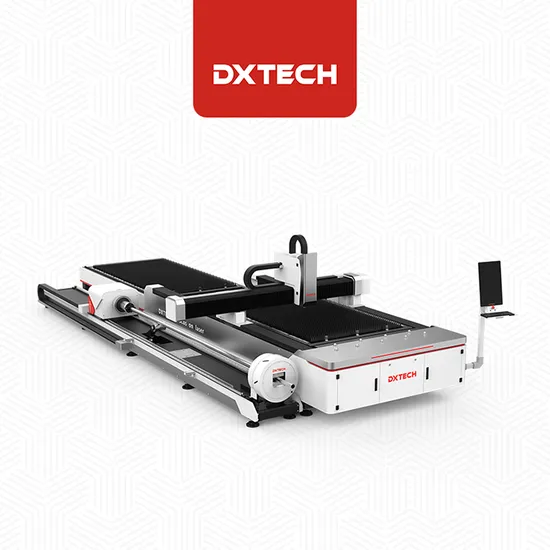

This plate and tube integrated metal fiber laser cutting machine is a dual-purpose machine, which can not only save factory space, but also save economic costs. And it is equipped with a professional CNC cutting system to ensure the high-speed and stable operation of the machine. And equipped with top imported parts to ensure the machine has a longer service life.
Advantage
1. One machine is multi-purpose, it can not only process metal plates, but also process round tubes, square tubes, etc.;
2. Intensive design, saving more than 50% of space;
3. Equipped with a professional CNC cutting system to ensure the high-speed and stable operation of the machine.
4. Using imported laser head, the processing speed is fast, the processing quality is high, and the processing efficiency is high.
5. The top imported accessories are used to ensure a longer service life of the machine.

Machine Part
Fully automatic double pneumatic chuck
1. One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
2. Pneumatic open clamp: with large and constant damping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.
3. The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.
Intelligent focusing laser head 1. Fully upgraded dust-proof design, double-layer protection, the risk of contamination of the lens is almost zero.
2. Cooling:the collimating mirror, focusing mirror and nozzle have a cooling structure.
3. Autofocus: without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel plate welding bed 1. High strength, not easily deformed
The heavy-duty design ensures that the bed will not be deformed for many years, it is stronger and has a high tensile.
2. More stable
We choose rectangular tubes with thicker walls than common machines. It is well welded and makes the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.
Technical Parameters

Model	DXTECH-1530ELT	DXTECH-1540ELT	DXTECH-2040ELT
Working area (mm)	1515*3030	1515*4040	2020*4050
Worktable bearing capacity	800kg	1300kg	2000kg
Max. acceleration	1.5G	1.5G	1.5G
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm
Pipe section shape	Round/square/rectangular	Round/square/rectangular	Round/square/rectangular
Max. length of pipe	3m/6m	3m/6m	3m/6m
Laser power	1kW - 6kW	1kW - 6kW	1kW - 6kW
Laser	Multiple options	Multiple options	Multiple options
Max. running speed	140m/min	140m/min	140m/min

Cutting Sample

Product Category

Feedback
Company Profile
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.

02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.

03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.

04 Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.

05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.

06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.

---
