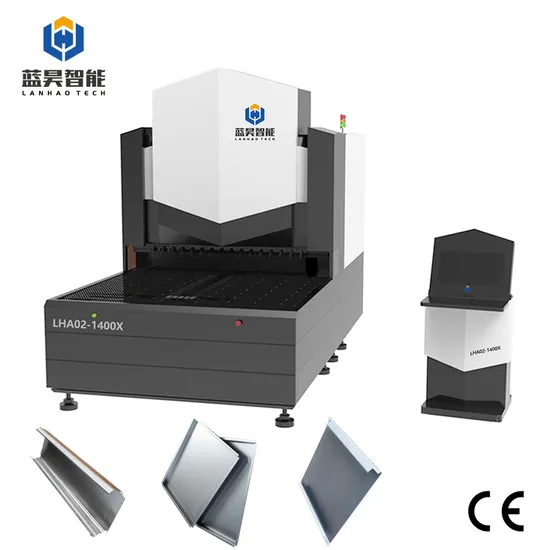

1400mm China Intelligent Foldiing Machine Lanhao Panel Bender

Product Description

Product Parameters

LHA-1400X-02 Technical parameters
Feeding structure	Suction cup
Work table structure	brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	1400mm
Max.Bending size	L 1400mm X W1400mm
Max. Bending height	170mm
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Total Motor power	34KW
Average power	About 1.5KW
Noise	About 50 dB
Machine size	L 365cm X W 190cm X H 290cm
Total weight	About 10 tons
User operating environment	Win7 and above operating system
Max. Bending width	UTS 520N/mm2 304 stainless steel 1.0mm UTS 410N/mm2 cold panel 1.2mm UTS 265N/mm2 aluminium panel 1.6mm
Min. Panel width	0.35mm
Four side forming min. Inner size	About 140mmx210mm
Double side forming min. Inner size	About 140mm
Bending angle	0-180 degree
Axis	9

Bending Cases
