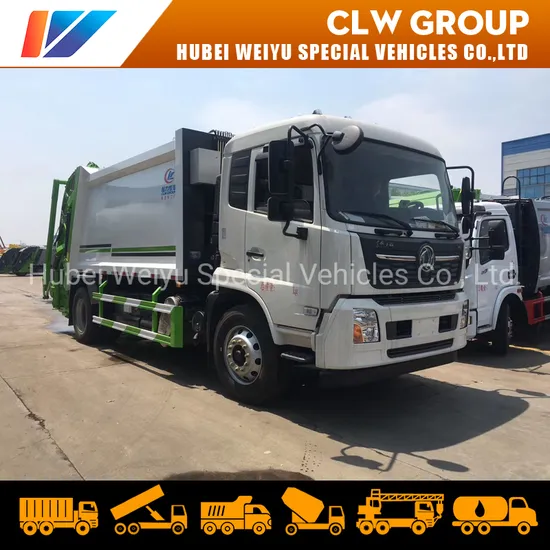

Dongfeng Tianjin DFAC 10-14cbm Garbage Compactor Truck Compressed Garbage Collecation Trucks

Product Description

Dongfeng Tianjin DFAC 10-14CBM Garbage Compactor Truck Compressed Garbage Collecation Trucks

Description
1. Making garbage collection simple: change the dirty appearance of the city and eliminate the secondary pollution;
2. High compression ratio and large loading capacity which is 2 times larger than usual garbage truck;
3. Easy Full Automatic Operation: electrical control system for loading and unloading operations.
4. One Person Operation: Reducing sanitation work, greatly improves the working efficiency.
5. Double Operation System: electrical control system and manual operation greatly improves the vehicle usage rate.
Specification

Technical parameters	Name	Dongfeng Compression garbage truck	Outline size(mm)	8600×2495×3100
	Chassis model	DFL1160	Gross weight(kg)	16000
	Engine model	B190 33	Loading weight(kg)	5900
	Power/Exhaust(Kw/ml)	140/5900	Curb weight(kg)	9905
	Fuel type	Diesel	Wheelbase(mm)	4500/4700/5100
	Axle load	6000/10000	Sping plate no.	7/9+6,8/10+8
	Max speed(km/h)	90	Tire model / number	9.00-20,10.00-20
	Approaching angle(°)	20	Front / rear track(mm)	1880/1800
	Departure angle(°)	14	Front/rear hang(mm)	1430/2670
Upp structure configuration	Garbage capacity(m3):	10-14	Filled mouth along the ground clearance (mm):	860
	Filling cycle time(s:)	30	Once unloading garbage working time (s):	40
	Filled once loaded garbage time (s):	12	Max crushing compression force (T):	16
	Max unloading force (T):	18	Filled Lifting time (S):	15

Reference Photos
Truck diagram
Main Parts
Main Working System
Garbage Loading and Unloading Process
Company Introduction
The CLW group, which was appointed by the Development and Reform Committee of China. ChengLi is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.Products Catalog:1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker3. Truck with crane / Truck mounted crane4. Dump Truck / Tipper Truck/Side Tipper/End Tipper5. Fire Fighting Truck / Fire Truck / Fire Vehicle6. Concrete Mixer Truck7. Van truck /Refrigerated truck8. Fecal suction truck / Sewage suction truck,9. Cement Powder Tank truck/ Bulk cement truck10. High-altitude operation truck,11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc12. Tractor truck13. High Pressure Cleaning Truck14. Sweeper Truck15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Certificates
After-sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
Warranty
1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.
Spare Parts
1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

---
