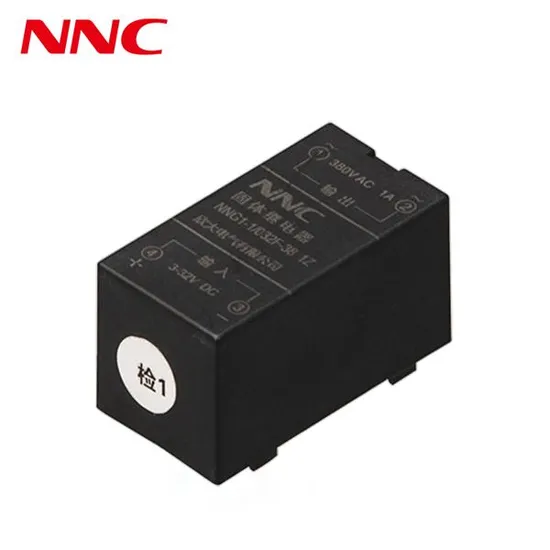

Solid State Relay Nng1-1/032f 1A DIP SSR

US$1.49-2.71 10 Pieces (MOQ)

Basic Info.

Model NO.
NNG1-1/032F 1A
Phase
1
Electricity Type
DC to AC DC to DC
Load
Medium Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Rectifier Type
Contact Rating
1A
Control Voltage
3-32VDC
Load Voltage
22: 24-240VAC 38: 24-440VAC
Certificate
UL
Transport Package
Carton
Specification
32.5mm*17.5mm*17.6mm
Trademark
NNC
Origin
China
HS Code
8536490000
Production Capacity
500000PCS/Week

Product Description


Specification
Dimension 32.5mm*17.5mm*17.6mm
Model NNG1-1/032F-22,38 NNG1-0/032F-20
Description Single phase( Input DC, Output AC ) Single phase( Input DC, Output DC )
Load current 1A
Control voltage 032: 3-32VDC
Control current 5-20mA
Turn-on voltage 3VDC 5VDC
Turn-off voltage 1VDC
Reverse voltage 32VDC
Load voltage 22: 24-240VAC
38: 24-440VAC
20: 12-200VDC
Instant voltage 22: 600VAC
38: 900VAC
20: 400VDC
On-state voltage drop <1.6VAC <1.2VDC
On-off time ≤10mS ≤5mS
Off-state leakage current ≤10mA ≤5mA
Dielectric strength ≥2500VAC
Insulation resistance 500mΩ(500VDC testing)
Ambient temperature Operating:-30°C ~ 80°C; Storage:-30°C ~ 100°C
Indicate methods /
Installation PCB
Weight Approx. 17g/PCS
Packing 400PCS/Carton, G.W.: 8KG, N.W.: 7KG, Dimension(mm): 380×210×175
Wiring Dragram
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
