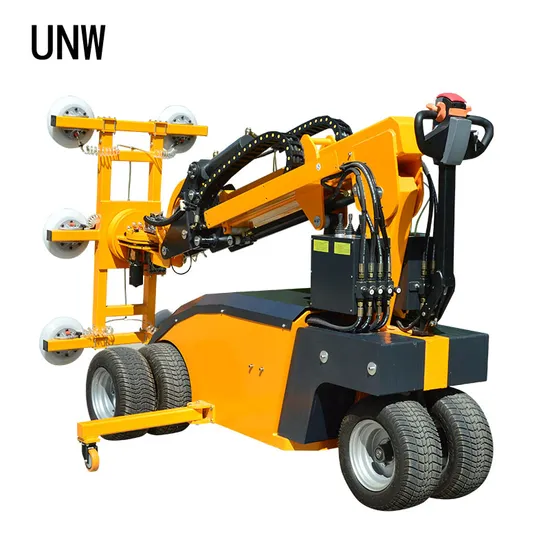

Rough Terrain Outdoor Use Glass Vacuum Lifter Glazing Robot with Suction Cups

Product Description

800kg Hydraulic Vacuum Glass Lifter Robot for Window Door Installing Product Description
UNW Brand Vacuum lifter LD Series is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various work pieces (such as glass, iron plates, etc.) Pick up, and transport the work piece to the designated position through the rota table mechanical arm.
Vacuum suction cup machine is mainly suitable for the installation or transportation of glass, wood, cement and iron plates.The difference from the glass suction cup is that the sponge suction cup needs to be replaced to absorb other materials.Automatic glass loading machine is equipped with an adjustable bracket that can be extended to adapt to panels of different sizes.
Features and Advantages:
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button;
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction;
3. Pad frame automatic vertical up/down by 180degree;
4. Automatic lateral side shift 100mm;
5. Automatic rotation 360 degree and automatic turn left/right are optional.
Product Parameters

Model Type	BGL-LD-300	BGL-LD-400	BGL-LD-500	BGL-LD-600	BGL-LD-800
Load Capacity	300kg (retract) 150kg (extend)	400kg (retract) 200kg (extend)	500kg (retract) 250kg (extend)	600kg (retract) 300kg (extend)	800kg (retract) 400kg (extend)
Max.Lifting Height	3880mm	3880mm	3880mm	3880mm	5000mm
QTY of Suction Cap	4pcs	4pcs	6pcs	6pcs	8pcs
Rubber Suction Cap	Ø300mm	Ø300mm	Ø300mm	Ø300mm	Ø300mm
Maintenance-free Battery	2x12V/100AH	2x12V/100AH	2x12V/120AH	2x12V/120AH	2x12V/120AH
Battery Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger	Smart Charger
Drive motor	24V/600W	24V/600W	24V/900W	24V/1200W	24V/1200W
Lifting Motor	24V/2000W/5L	24V/2000W/5L	24V/2000W/5L	24V/2000W/12L	24V/2000W/12L
Chassis L*W	2660x810mm	2660x810mm	2800x810mm	2800x810mm	2800x1070mm
Driving Wheel	Ø250x80mm	Ø250x80mm	Ø310x100mm	Ø310x100mm	Ø300x125mm
N.W/G.W	1100/1150kg	1280/1330kg	1300/1350kg	1400/1450kg	1700/1750kg

Detailed Photos
Real Order
Application
Company Profile
Shandong Unid Intelligent Technology Co., Ltd. is a leading manufacturer of hydraulic lifting equipment and Aerial Work lift Platform with more than 10-years-experience, including Intelligent glazing robot, suction cups vacuum glass lifters, sandwich panels vacuum lifters, metal sheet vacuum lifters and other single-circuit and dual-circuit vacuum lifters.
We always keep "To make Construction easier,safer and more efficient" in Mind, Serving for customers mainly from Europe, North America, South America and so on.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
After Sales Service
1.Spare parts provided freely within quality warranty.
2. Providing user's manual.
3.Lift time technical support.
4.24 hours telephone and Internet service
FAQ
1.How can customer buy parts once it break down?
The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair the scissor lift table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it break down within one year,we can send the parts free of charge to you.
Certificate:CE ROHS SGS ISO ETC.

---
