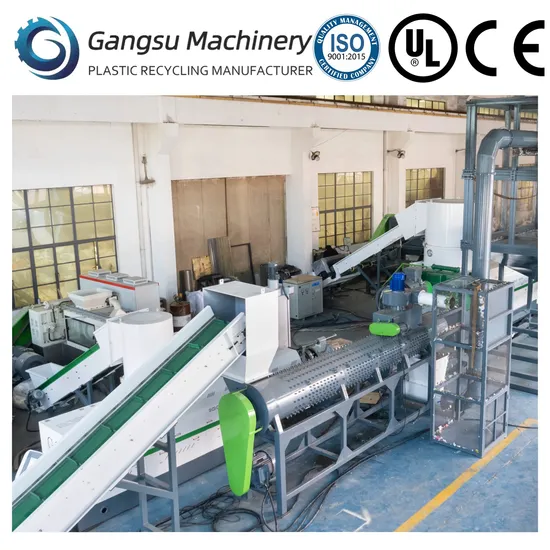

Pet Bottle Recycling Machine Plastic Bottle Recycling Equipment for Recycling Washing Line

Product Description

PET Bottle Recycling Machine Plastic Bottle Recycling Equipment for Recycling Washing Line Product Parameters

Model	Capacity	Installed Power	Hot Washing	Manpower	Area Required (L*W*H)
GS-300	300kg/hr	90KW	Optional	1-2	22m*5m*3.5m
GS-500	500kg/hr	220KW	Optional	2-3	25m*6m*5.5m
GS-1000	1000kg/hr	500KW	Optional	4-5	35m*6m*5.5m

Recycling Process
Product Description
Belt conveyor
Used to convey PP/HDPE solid waste materials to the crusher in the back-end equipment
Plastic crusher
Used for crushing PP/HDPE solid waste into 10-20mm flakes
Screw feeder
This equipment is used to transport the rinsed material to the rear equipment.
Floating tank
It is used to rinse the material for the first time to separate the sediment impurities in the material
Friction washer
Used to rinse the rinsed material with high pressure water, high speed scrubbing and conveying to the rear equipment
De-water machine
The centrifugal force generated by high-speed rotation removes most of the water from the material
Zig-zag dryer system
Heating of the air in the pipeline to further reduce the moisture content of the material
Silo
For storage of clean and dry plastic film flakes
Control cabinet
For controlling the washing line and observing the operation of each piece of machine
