China CNC Stirrup Rebar Bender Steel Wire Bending Machine

Product Description

Product Description

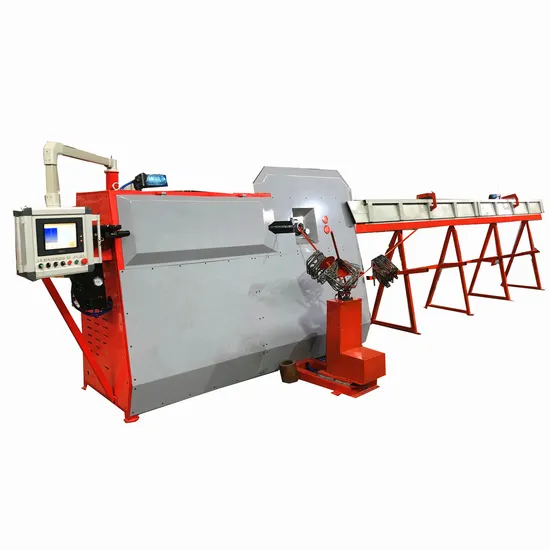

China CNC stirrup rebar bender steel wire bending machine
Automatic stirrup bending machine with CNC servo control system, can be done automatically reinforced straightening, cut to length, bending hoop, cutting and other process, the maximum diameter of 14mm steel wire can bended. The machine can continuous produce any planar shape products, widely used in construction, a large steel plant and other fields. We are always improving our machines with the latest technology to produce more perfect products , and to meet the actual needs of steel processing better.
Advantages 1.This bending machine adopts servo controlling system;
2.Automatically accomplish the functions of rebar's feeding,straightening,bending and cutting etc.;
3.Max bending diameter of rebar is 12mm;
4.Continuously bend various stirrup of plane figure;
5.Widely used in construction industry and rebar manufacturing enterprise;
6.High efficiency and accurate processing precision.
Product parameters

Model	KY-RBM-2	KY-RBM-3	KY-RBM-4	KY-RBM-5
Single wire diameter	6-10mm	6-12mm	6-10mm	6-12mm
Double wire diameter	6-8mm	6-10mm	6-8mm	6-10mm
Angle of bending	+ 90°	+ 360°	+ 180°	+ 360°
Wire feeding speed	50m/min	80m/min	50m/min	80m/min
Bending speed	800°/sec	1000°/sec	800°/sec	1000°/sec
Power transmission	Reducer	Synchronous belt (Double)	Reducer	Synchronous belt (Double)
Feeding wire motor	Asynchronous servo motor 7.5 kw	Synchronous servo motor 18 kw	Asynchronous servo motor 11 kw	Synchronous servo motor 18 kw
Bending motor	Asynchronous servo motor 4.0 kw	Synchronous servo motor 7.5 kw	Asynchronous servo motor 5.5 kw	Synchronous servo motor 7.5 kw
Cutting motor	Asynchronous motor 4.0 kw	Asynchronous motor 4.0 kw	Asynchronous motor 4.0 kw	Asynchronous motor 4.0 kw
Rebar hook support rack length	NO	NO	9 meter	9 meter
Air compressor	NO	YES	NO	YES
Accuracy of length	±1mm	±1mm	±1mm	±1mm
Angular precision	±1°	±1°	±1°	±1°
Work temperature	-5ºC-40ºC	-5ºC-40ºC	-5ºC-40ºC	-5ºC-40ºC
Machine weight	950 kg	1350kg	1500kg	1800kg
Dimensions (mm)	2800*1000*1500	3500*1050*2015	11800*1000*1500	12500*1050*2015

Details Images
.......................................

	(1) Straightening system Multi-roller straightening mechanism , no damage to steel bars, better straightening effect.
(2) Bending system Pneumatic expansion and durability. The angle can be adjusted arbitrarily, and the stirrups of various shapes and sizes can be produced. Pneumatic telescopic bending system,hydraulic ,mechanical cutting can be sustomized.
	(3)Strong motor Strong power to keep work efficiency ,easy to use , effortless. The motor can ensure 300000 times without malfunction.
(4)Air compressor The machine body has been equipped with air compressors, which are all famous brands in China to ensure the stable operation of machinery.
	(5)Detailed wiring Wiring specifications are fair , the route is clear,and the application is simple.

Company Profile

	Factory History Our factory was founded in 2000, is famous as "Hometown of wire mesh" in China. We are a professional manufacturer of wire mesh machinery. Our company has been developing smoothly and quickly and now we have more than 150 employees.
	In a well-ordered workshop, workers unite and love, strictly control the quality, concentrate on their own areas of expertise, strive for excellence, ensure the quality of products is too hard, high requirements and strict standards, so that every customer is satisfied. Therefore, there are many customers returning, we can not live up to every trust.

Hebei Kaiye Machinery Equipment Co., Ltd.(Original China Anping Jiasheng Welding Equipment Factory) was founded in 1998, which is a professional manufacturer in wire mesh machine field of China with sophisticated technology.We have ISO9001:2009.and SGS certification. Our company has now developed into a research and development,design,manufacturing,sales for the integration of large-scale professional welding equipment manufacturing enterprises. Our service
Pre-sale service
1. Select equipment model.
2. Design and manufacture products according to clients' special requirement.
Services during the sale
1. Pre-check and accept products ahead of delivery.
2. Help clients to draft solving plans.
After-sale service
1. We will reply you for your inquiry in 24 hours.
2. After you get the products, we'll send technicians to your factory. Then they will guide your workers to install and debug the machine patiently untill the machine can work normally. Since our factory established, our after-sale team had been to many contries and received customers' critical acclaim.
Market and Customers
Factory Customer Kaiye's quality has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to the Romania, Turkey, poland, Ukraine, Russia, Kazakhstan, Iran, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil.
FAQ Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q:Why choose us?
A: Save Time, Save Cost, and Safety ! Each of our customers proved this!
Q: How long is the warranty?
A: Two years warranty and after sales service for whole life.
Q:Can you make the english language or other language of the CNC control system for the customers?
A:Yes. Of course. We can make different language for the cnc control. Just tell us which language you need.
Q:How to consult the quotation of the stirrup bender?
A:please tell me:what's the diameter of the round bar?what's the diameter of the ribbed bar? Is there any special need about the shape?

---
