concrete shotcret Refractory Gunning Machine Concrete Spray Shotcrete Gunite Machine Wet and Dry Shotcrete Machine for Sale

Product Description

concrete shotcret Refractory Gunning Machine Concrete Spray Shotcrete Gunite Machine Wet and Dry Shotcrete Machine for Sale Product Description

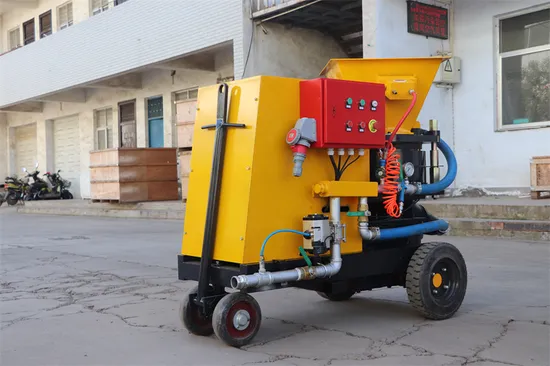

LSZ-10S/E Shotcrete machine is a multifunctional rotor type machine for wet and dry spraying and conveying. The materials that can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
Compared with traditional shotcrete machines, LSZ-10S/E has the advantage of being lighter and more compact. In addition, LSZ-10S/E is equipped with a rubber sealing plate lubrication system, which can effectively reduce the wear of rubber plates, longer service life and better sealing effect.

Please send an inquiry for more information and quotation!
Detailed Photos
Advantages and Benefits
1. Theoretical displacement can be adjusted.
2. Easily overcome obstacles of long or high conveying distances (dry mix).
3. Less dust development.
4. Equipped with an automatic lubrication system, the rubber plate has a longer service life.
5. For concrete repair, slope stabilization, excavation support, or mining.
6. Light and compact machine design.
The main structure

1	Modify clamp
2	Rotor
3	Upper rubber plate
4	Hopper seat
5	Lower rubber plate
6	Clamp

Dimension
Product Parameters

Name	Data
Machine type	LSZ-10S/E
Power supply	AC380V 50Hz three-phase
Motor power	7.5kw
Air consumption	10 m3/min
Working pressure	0.2Mpa
Rotor speed	12.3rpm
Rotor size	14.5 liters
Theoretical output	10m3/h
Recommended hose size	D64mm
Max. aggregate size	20mm
Max. conveying distance horizontal/vertical	Dry: 200m/100m
	Wet: 40m/15m
Dimensions	Length	1950mm
	Height	1375mm
	Width	856mm
Weight	1000Kg
Based on a theoretical filling level of 100%. Before use or processing, always consult the current product data sheet of the products used.
