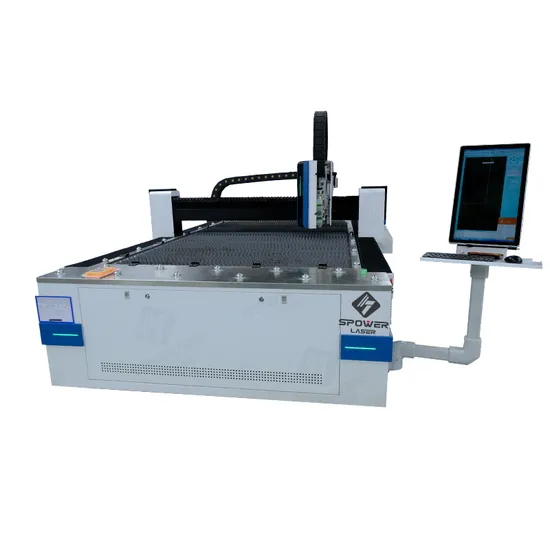

750W 1000W Fiber Laser Engraving Machine Metal Aluminum Copper Plates Cutting

Product Description

750w 1000w fiber laser engraving machine metal aluminum copper plates cutting
Product Description
Features:
1)Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability.
2) Adopts imported high precision, high speed, linear guide rail drive, good rigidity and good stability.
3) Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.
4) Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc.
5) Adopting servo motor and driver, and combind Japan Reducer, which can make sure machine high speed and big power.
Product Parameters

Fiber Laser Cutting Machine
Model	SPL3015
Working area	1500*3000mm
Optional Working Area	1300*2500mm, 2000*3000mm, 2000*4000mm, 2000*6000mm,..
Configuration	Specifications
Laser Generator	GW/Raycus/IPG
Laser Cutting Head	Au3tech, Raytool,
CNC Controller	Au3tech, Cypcut
Servo driver system	Delta/Yaskawa/Pansonic
Speed Reducer	Shimpo Reducer, Japan
Rack and Pinion:	Taiwan CSK/TBI/HIWIN guide rails
Max.cutting speed	0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Repeat PrecisionX, Y, Z Axis Repeat Precision	≤±0.03mm /m
Min line width	≤0.15mm
Maximum Empty Running Speed	120m/min
Driving way	Imported servo motor
Transmission way	Y-axis import gear rack double driver, X-axis imported ball screw
Cooling System	Water Cooling
Continuous working time	24 Hours
Power requirements	380V/3 Phases /50Hz or 60Hz
Machine size (L*W*H)	4500x2300x1800mm

Detailed Photos
Yaskawa servo motor and driver
FIBER LEASE HEAD
The laser head body is increased anti-collision function and can be adapted with a variety of fiber laser
INDUSTRY WATER CHILLER
The constant temperature of water chiller can keep the laser power stable,work more stable and fast

Application
Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.
Application Industry
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc
Related Products
Fiber laser cutting machine with rotary for cutting round and square pipes.

After-sales Service
1. For whole fiber laser cutting machine, we provide 2 years warranty and lifetime after-sales service, we will provide the consumable. parts at an agency price when you need replacement.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Our engineer could support you technology to your country if necessary.
4.Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
5. English manual and CD video for machine using and maintaining will send to you with the machine.
Company Profile

SPOWER was founded in 2002, specialize in cnc router machine, CO2 laser machine, fiber laser machine, plasma cutting machine more than 15 years. BCAMCNC always adhere advanced technology combined with satisfied user experience,make more efficient working and more stable cnc machinery for our client. Now we have expert staff more than 100 , 10 sales teams, 2 product R&D teams , 2 after-sales service teams Products sell well in Europe, America, Australia ,Africa, Asia etc, welcomed by consumers for its Strictly abide by the principles "Credit First, Quality First, Customer First and Service First."
Packaging & Shipping
1. Standard plywood case, its compressive strength and bearing quality is better.
2. The board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. When importing, the plywood case is with fumigation-free, the procedure is simple.

---
