Full Automatic High Quality HDPE LDPE Film PP Jumbo Woven Bag Recycling Washing Machinery

Product Description

Full automatic high quality HDPE LDPE Film PP Jumbo Woven Bag Recycling washing Machinery,pp pe pvc film recycling washing machine line,You can put dirty film direct to wash it, after washing it you can use them to pelletize or injection or do other things. 1. The whole line is flowing is : conveyer belt - crusher - Screw loader - floating - screw loader - frication machine - Screw loader - dewater - screw loader - hot pipe dryer.
2. The capacity can be supplized accroding to your requrement, such as : 300kg/h, 500kg/h, 800kg/h, 1000kg/h,1500kg/h, 2000kg/h
3. How many parts do you need is according to your require.such as floating ,you can use one set or two sets, and also three sets, this is up to how dirty of your raw material.
4. You can choose full automatic or half-automatic line
5. We have SGS certifcation, past CE certifcation.
6. After drying the water content can reach 5-8% (according to the thickness of film).
The plastic machine is special for PE PP PVC PET BOPP film crushing, washing and drying production line , it can easily wash waste plastic products. Waste and dirty agricultural films, waste packing material and hard plastics can be treated step by step with this facility.
1.Raw Material & Final Product:

Raw material & Formulation	Post-consumer PET bottles/ flakes
Final Product & Output Capacity	300Kg/h
Description of Final Product	1. Moisture: max 5% 2. Bulk density: 0.3G/CM3 3. Particle size: 50-80mm (can be designed as per special requirement)

2.Work Condition:

Warehouse/Workshop	Dimension (M*M*M): 50(L)×8(W)×5(H); If workshop is small, turn the machine around.
Power supply & Installation power	3-phase, 380 V, 50 Hz; (do as customer's request)
Wire/cables(provide by customer)	Wires/cables from power supply to control cabinet of this production line; all electrical cables from control cabinet to each machine.
Water supply hose/pipe(provide by customer)	Water supply to machines and pools

3.Energy Consumption:

Installation power	220Kw ( Actual Consumption 150Kw )
Water supply	Consumption: ~8 tons per hour recycling water. Pressure: 0.6Mpa
Manpower	3 Persons

Every parts list

Item	Name	Specification	Quantity
1	Belt conveyer	1.5kW	1 pc.
2	PC 800 Wet Crusher	55kW(Siemens motor,NSK bearing)	1 pc.
3	Friction loader	15kW(NSK bearing)	1 pc.
4	Film washing tank	1.5kW*2(ABB inverter)	1pc.
5	Friction loader	15kW(NSK bearing)	1 pc.
6	High speed horizontal dewater	55kW(Siemens motor,NSK bearing)	1 pc.
7	Pipe drying system	36 kW +7.5kW	1 pc.
8	Storage silo	1 m3	1 pc.
9	Electrical equipment	ABB inverter, Schindler contractor, Omron temerature controlled meter	1 pc.
All material which contact the film is Stainless Steel 304

Belt conveyer 1.Transport method:By strap
2.Power of motor:1.5kw
3.Work length:6000 mm
4.Width of strap:600mm
5.Conveying speed:1-10m/min
6. Material of belt: Industry Rubber
Crusher
1.Type: PC800
2. Quantity of rotating blade:6 pcs.
3.Quantity of fixed blade:4 pcs.
4.Capacity:500 kg/h
5.Aperture of sieve:φ80mm
6.Power of motor:55 kw
Rotary charger: φ380*3500,diameter is φ3mm, xwd4,3kw,rotat: 9
Floating machine:1500*4500mm
Water tank
1.Effective length: 4000mm
2.Power of motor: 2.2kw
3.Screw diameter: 200mm
4.Screw speed :25rpm
5.Material : Stainless steel
6.Discharging mode: bottom discharge
7.Quantity of roller :4
8.Dimension: 6000*1200*1850mm
9.Weight: 1220kg
Friction loader
1.Power of motor:15 kw
2.Effective length:2500mm
3.Diameter of screw:Φ250mm
4.Speed of screw:500-600rpm
5.Type:"U"type designed, easily to clear
6.Method of feeding:By screw
Dewater machine, new design dewater machine, with high capacity. Material won't clogged together. Motor power: 55kw Inside Rotary diameter: 750mm Length: 2150mm Shaft screw : thickness 16mm Paddle thickness: 10mm Screen thinkness: 2mm Diameter of the hole: 3mm

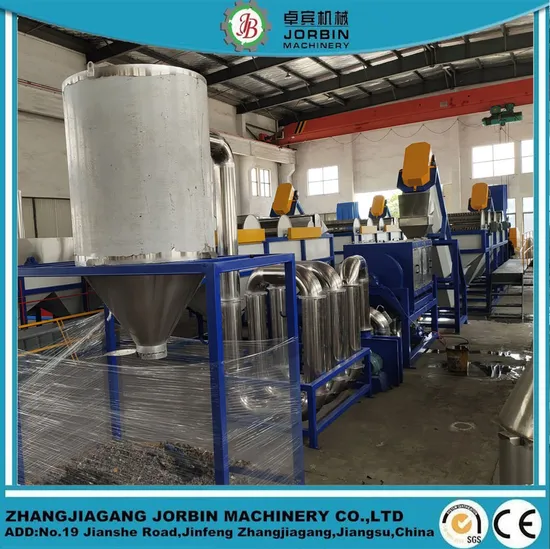

Hot pipe dryer and Silo
Machine line under testing
If you need more detail of the machine kindly feel free to contact me, I can send you more photoes and vedio, we also can make desig for you up to your raw material 1. We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book 2. We provides one-year quality guarantee. During this period, if the machine's malfunction is approved to be our responsibility, we will send the broken spare parts to you with DHL courier or other way within 7 workdays after receiving the complainant. And send the technicians to the buyer's factory for maintaining. All charges are in our account.
3. After one year guarantee, If you need we can provides payable spare parts and technician's VISITING maintenance, and any broken spares we can send you soon as possible.
4. We trust that our quotation meets with your requirements and we will gladly furnish you with further information.
5. 24Hours service : Cell+86-13915707468

---
