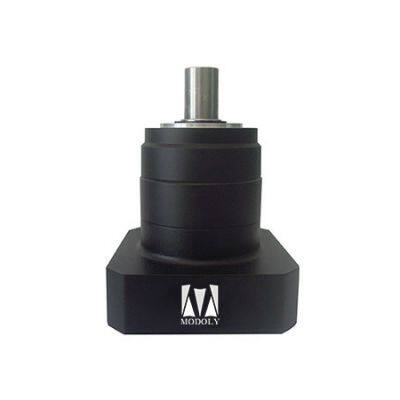

MAE Series MAE 60 planetary reducer gearbox

Product Details

Product Description

Product Description
Technical Specifications:
Torque Performance:
▸ Maximum Torque (T₂): 50-80Nm
▸ Rated Output Torque (T₁n): 25-40Nm
▸ Emergency Braking Torque: 100Nm
Speed & Dynamics:
▸ Ultra-High Speed: 4000-8000 rpm
▸ Exceptionally Low Inertia: 0.13 kg·cm²
▸ Lightweight Construction: 4 kg
Load Capacity:
▸ Axial Force: 430N
▸ Radial Force: 1060N
Premium Features:
✓ 90% Energy Efficiency (η)
✓ IP65 Protection (Dust/Water Proof)
✓ Maintenance-Free Lifetime Lubrication
✓ Wide Temperature Range: -15°C to +45°C
✓ Moderate Noise Level: ≤77 dB(A)
✓ Professional Black Finish
Engineering Advantages:
• Optimized for high-speed precision applications
• Superior radial load capacity
• Compact power-dense design
• Reliable performance in harsh environments
Ideal Applications:
Industrial robotics
CNC machining centers
Automated production lines
Medical equipment drives
Packaging machinery

---
