Three-Phase Motors 3 HP Motors 380V 1450 Rpm 3000 Rpm B3 7.5kw 11kw 15kw 18.5kw 22kw 30kw 37kw

Product Description

Product Description

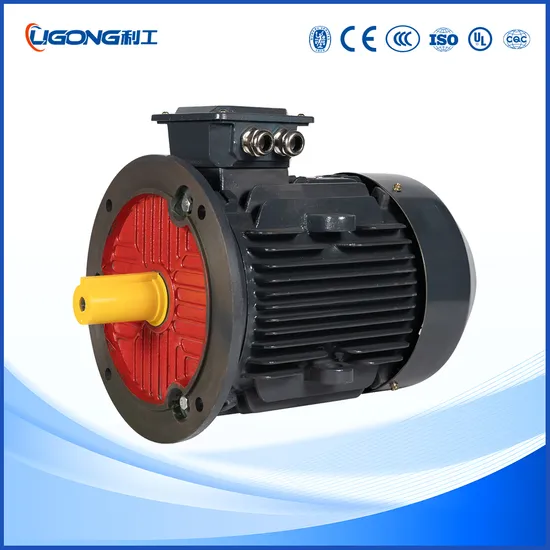

The High-Efficiency IE5 (YE5) Series Three-Phase Aluminum Housing Motor is designed to provide the ultimate performance, while remaining high-efficiency. The lightweight aluminum housing enhances its applications in industries where reliable power supply and portability are key requirements.
For example, the motor can be applied in the manufacturing, agriculture, and HVAC system industries. In essence, it is useful in nearly all industries where there is a high demand for reliable and consistent performance and durability.
This motor is constructed to comply with the IE3 efficiency standards. It assures a large margin in the reduction of energy consumption, with the effectiveness of being cost-efficient over its entire lifetime. The utilization of aluminum in making the motor housing provides a protective shell against corrosion.
Noteworthy, the aluminum housing is vital in enhancing the lightweight feature of this motor. Specifically, the high-density power feature allows it to increase the overall efficiency of AHU in an HVAC system, consequently reducing the associated working cost of the equipment and maintenance services.
With respect to the development of machinery, it can be installed in various forms to meet different machine requirements.
Product Features
High Efficiency: IE5 standards are met by the motor, and it operates within that stricture. As such, energy is utilized optimally, reducing the operation costs associated with machinery. For instance, the cost of power is a chief expenditure in manufacturing, and the efficiency of this motor will reduce those power bills, especially for works that run for twenty-four hours. Aluminum Housing: Apart from enhancing the durability of the motor, the aluminum shell proves fundamental in reducing the overall weight of the motors. Consequently, they become easy to handle and install, especially in tight places where space would be a challenge for heavy motors. Low Noise and Vibration: The motor is engineered to operate silently with minimal or no vibration. This aspect makes them useful in buildings where sound might be a nuisance, especially on top of rooftop HVAC systems in office buildings. Long Service Life: Bearings of the motor are of very high quality largely due to the robust nature of the thing. Moreover, they can be oiled and greased, which again ensures a long service life, particularly when used in applications like conveyor belts in manufacturing plants. Versatile Mounting Options: The motor design facilitates mounting in any of the six possible positions, ensuring it can be put to the best application under various tight industrial installations.
Optional Features:
Electrical:Insulation Class:HThermal Protection:frame up to 132(include), with PTC Thermistor, Thermostat or PT100Mechanical:Others mountingsProtection Degree:IP56, IP65, IP66Sealing:Lip seal, Oil sealSpace Heater, Double shaft endsDrain Hole
Model Type Power Output (kW) Power Output (Hp) Full Load Current (A) Full Load Speed (r/min) Efficiency (%) Power factor (cosφ) Torch Rated torque Lr/Lt Maximum torque Bd/Lt Maximum current Lra/Lt Rotate Weight (kg)

YE3 - 3551 - 2	380	355	475	2975	95.8	0.90	1.3	2.5	6.5	2050
YE3 - 3552 - 2	380	400	535	2975	95.8	0.90	1.3	2.5	6.5	2180
YE3 - 3553 - 2	380	450	600	2975	95.8	0.90	1.3	2.5	6.5	2340
YE3 - 4001 - 2	380	500	675	2982	95.8	0.90	1.3	2.5	6.5	2520
YE3 - 4002 - 2	380	560	750	2982	95.8	0.91	1.2	2.5	6.5	3200
YE3 - 4003 - 2	660	630	840	2982	95.8	0.91	1.2	2.5	6.5	3490
YE3 - 4501 - 2	660	710	950	2982	95.8	0.91	1.2	2.5	6.5	4320
YE3 - 4502 - 2	660	800	1078	2982	95.8	0.91	1.2	2.5	6.5	5000
YE3 - 4503 - 2	660	900	1200	2982	95.8	0.91	1.2	2.5	6.5	5200
YE3 - 4504 - 2	660	1000	1335	2982	95.8	0.92	1.2	2.5	6.5	5600
YE3 - 3551 - 4	380	355	475	1485	96.0	0.88	1.6	2.5	6.5	2100
YE3 - 3552 - 4	380	400	535	1485	96.0	0.88	1.6	2.5	6.6	2300
YE3 - 3553 - 4	380	450	600	1485	96.0	0.88	1.6	2.5	6.5	2460
YE3 - 4001 - 4	380	500	675	1492	96.0	0.88	1.4	2.5	6.5	2720
YE3 - 4002 - 4	380	560	750	1492	96.0	0.89	1.4	2.5	6.5	3360
YE3 - 4003 - 4	380	630	840	1492	96.0	0.89	1.4	2.5	6.5	3430
YE3 - 4501 - 4	660	710	950	1492	96.0	0.89	1.4	2.5	6.5	4900
YE3 - 4502 - 4	660	800	1078	1492	96.0	0.90	1.4	2.5	6.5	5200
YE3 - 4503 - 4	660	900	1200	1492	96.0	0.90	1.4	2.5	6.5	5500
YE3 - 4504 - 4	660	1000	1335	1492	96.0	0.90	1.4	2.5	6.5	6750
YE3 - 3552 - 6	380	355	430	990	95.8	0.82	1.8	2.5	6.5	2370
YE3 - 3553 - 6	380	355	475	990	95.8	0.82	1.8	2.4	6.5	2490
YE3 - 4001 - 6	380	400	535	990	95.8	0.83	1.6	2.4	6.5	2630
YE3 - 4002 - 6	380	450	600	994	95.8	0.83	1.6	2.4	6.5	3660
YE3 - 4003 - 6	660	500	675	994	95.8	0.83	1.6	2.4	6.5	3750
YE3 - 4501 - 6	660	560	750	994	95.8	0.84	1.6	2.4	6.5	4820
YE3 - 4502 - 6	660	630	840	994	95.8	0.84	1.6	2.4	6.5	5200
YE3 - 4503 - 6	660	710	950	994	95.8	0.84	1.6	2.4	6.5	5600
YE3 - 4504 - 6	660	800	1075	994	95.8	0.84	1.6	2.4	6.5	6750

Model Type Power Output (kW) Power Output (Hp) Full Load Current (A) Full Load Speed (r/min) Efficiency (%) Power factor (cosφ) Torch Rated torque Lrt/Rlt Maximum torque Bdt/Rlt Rotate current Rated curra/Rla Weight (kg)

YE3 - 3552 - 8	380	250	340	500.51	94.6	0.80	1.6	2.5	6.0	2410
YE3 - 3553 - 8	380	315	430	630.65	94.6	0.80	1.6	2.5	6.0	2600
YE3 - 4001 - 8	380	355	475	710.73	94.6	0.80	1.6	2.4	6.0	2750
YE3 - 4002 - 8	660	400	535	800.82	94.6	0.80	1.6	2.4	6.0	3350
YE3 - 4501 - 8	660	450	600	889.80	94.6	0.81	1.6	2.4	6.0	3760
YE3 - 4502 - 8	660	500	675	988.67	94.6	0.81	1.6	2.4	6.0	4900
YE3 - 4503 - 8	660	560	750	1107.31	94.6	0.81	1.6	2.4	6.0	5300
YE3 - 4504 - 8	660	630	840	1245.72	94.6	0.81	1.6	2.4	6.0	5750
YE3 - 3552 - 10	380	200	270	436.10	93.9	0.74	1.4	2.5	6.0	2230
YE3 - 3553 - 10	380	250	340	545.13	93.9	0.74	1.4	2.5	6.0	2410
YE3 - 4002 - 10	380	315	430	656.60	94.4	0.77	1.4	2.5	6.0	3450
YE3 - 4003 - 10	380	355	574	739.98	94.4	0.77	1.3	2.5	6.0	5100
YE3 - 4502 - 10	380	400	535	832.90	94.5	0.77	1.3	2.5	6.0	5400
YE3 - 4503 - 10	380	450	600	937.01	94.5	0.77	1.3	2.5	6.0	5700
YE3 - 4504 - 10	380	500	675	1040.03	94.5	0.77	1.3	2.5	6.0	6650

Mounting Type:
Conventional mounting type and suitable frame size are given in following table(with "√")

Frame

basic type

derived type

B3

B5

B35

V1

V3

V5

V6

B6

B7

B8

V15

V36

B14

B34

V18

63~112

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

132~160

√

√

√

√

√

√

√

√

√

√

√

√

-

-

-

180~280

√

√

√

√

-

-

-

-

-

-

-

-

-

-

-

315~355

√

-

√

√

-

-

-

-

-

-

-

-

-

-

-

If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.

FAQ
1. What is your product range?
A: Diversified motors: Y, YE(IE), YB, YCT, YF, YC serises etc,
Peripheral: fan, water pump, etc.
2. Do you offer customization services?
A: Bespoke drawing, parameter support, custom packaging and appearance also available.
3. Can the price be reduced?
A: Better quality at the most competitive price-up to you.
4. What is your lead time?
A: In-stock items: same-day delivery;
Large production:15 days;
Custom production: around 45 days
5. What shipping terms do you accept?
A: EXW,FOB...DDP
6. What are the advantages of your after-sales service?
A: One-year warranty, parts delivery, online guidance or on-site engineer visits.
We deliver ex1.What is your product range?
2.Do you offer customization services?
3.Can the price be reduced?
4.What is your lead time?
5.What shipping terms do you accept?
6.What are the advantages of your after-sales service?tensive experience across three-phase motor stages from design and development through mature production technologies, providing superior efficiency, robustness and acuracy. Our mission is to be the partner of choice for our customers and stakeholders, delivering energy products that help us all achieve a low carbon future.

---
