Full Automatic High Speed PVC Cooling and Heating Plastic Mixer with High Technology

Product Description

Introduction
Heating and cooling mixers are widely used in mixing, stirring, drying, coloring all kinds of resin plastic such as PVC,PP,PE, rubber, and chemical industries. It can also be used in dryness of ABS and polycarbonate, and mixing hydroxybenzene, aldehyde resin.
With 30 years in heating and cooling mixer industry, hot and cool mixer unit from YILI Machinery is an ideal equipment for profile and pipes with advanced design. Combined with the heating mixing technique and cooling mixing technique, the materials from hot mixer would get into cooling mixer automatically to be cooled, then the remained gas will be eliminated and agglomeration is avoid.
Technical Specification

HEATING/COOLING MIXER UNIT (VERTICAL TYPE)
Model	Total Volume (L)	Effective Volume (L)	Motor power (Kw)	Main shaft speed (r/min)	Heating/Cooling method	Unload way	Weight (t)
SRL-Z50/100A	50/100	37/70	7/11/7.5	510/1013/118	2KW/Water	Pneumatic	2.8
SRL-Z100/200A	100/200	75/130	14/22/11	650/1300/130	6KW/Water		3
SRL-Z200/500A	200/500	150/320	30/42/11	484/967/110	6KW/Water		3.5
SRL-Z300/600A	300/600	225/384	40/55/11	480/964/100	9KW/Water		3.8
SRL-Z500/1000A	500/1000	375/640	55/75/15	413/830/71	9KW/Water		5.8
HEATING/COOLING MIXER UNIT (HORIZONTAL TYPE)
Model	Total Volume (L)	Effective Volume (L)	Motor power (Kw)	Main shaft speed (r/min)	Heating/Cooling method	Unload way	Weight (t)
SRL-Z200/500W	200/500	150/320	30/42/7.5	490/980/70	6KW/Water	Pneumatic	3.5
SRL-Z300/600W	300/600	225/384	40/55/11	480/964/70	9KW/Water		3.8
SRL-Z500/1000W	500/1000	375/660	55/75/15	441/886/60	9KW/Water		7.8
SRL-Z500/1600W	500/1600	375/1024	55/75/18.5	441/886/51	9KW/Water		8.5
SRL-Z800/2000W	800/2000	560/1280	160/18.5	0-660/51	self-frication		9.5
SRL-Z800/2500W	800/2500	560/1600	160/22	0-660/51			11
SRL-Z1000/3500W	1000/3500	750/2240	200/30	0-660/51			12
SRL-Z800×2/4000W	1600/4000	1120/2550	160×2/37	0-660/51			13
SRL-Z1500/4000W	1500/4000	1125/2600	200(280)/37	0-650/65			14
SRL-Z2000/5000W	2000/5000	1400/3250	315 (450)/55	0-850/50			15
SRL-Z1500×2/6000W	3000/6000	1125×2/3900	200×2/75	0-650/50			20

Tech Features & Advantages Absorbing advanced foreign technology and advanced PLC control system realize high automatic level and good mixing effect; Low energy consumption, excellent performance and easy maintenance; Compact structure, perfect appearance; Stainless steel material, with reasonable arrangement of pipelines; Detailed Product pictures

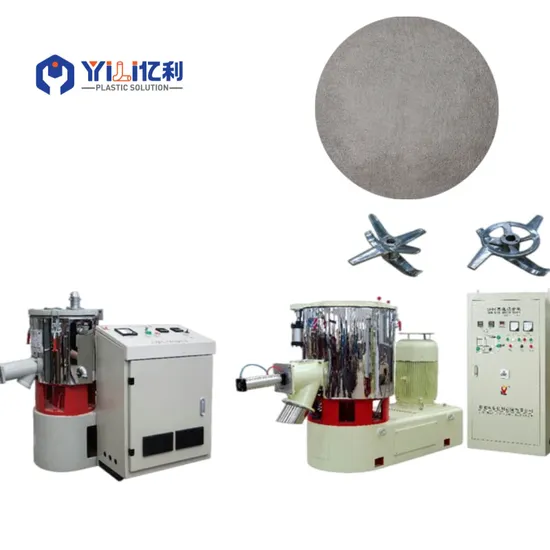

Vertical type of heating and cooling mixer unit, which normally cover from model 100/200A to 500/1000A, smaller sizes of mixer unit.
When the mixer unit comes to large capacity, the hot mixer sizes is 500L or more , the cooling mixer will choose horizontal type, which ensure larger space for better and fast cooling of material.

---
